Cable reels for home use
New

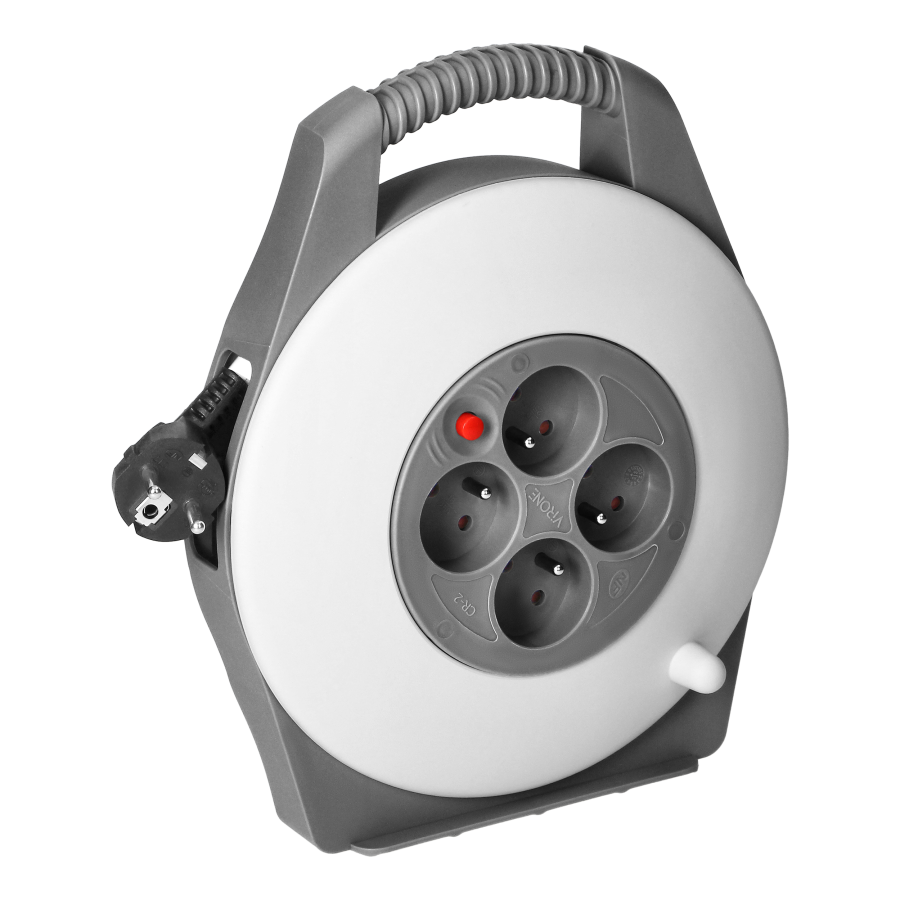

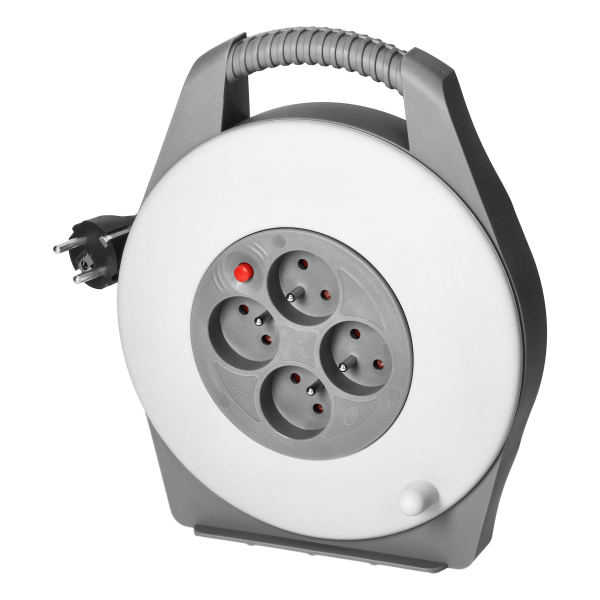

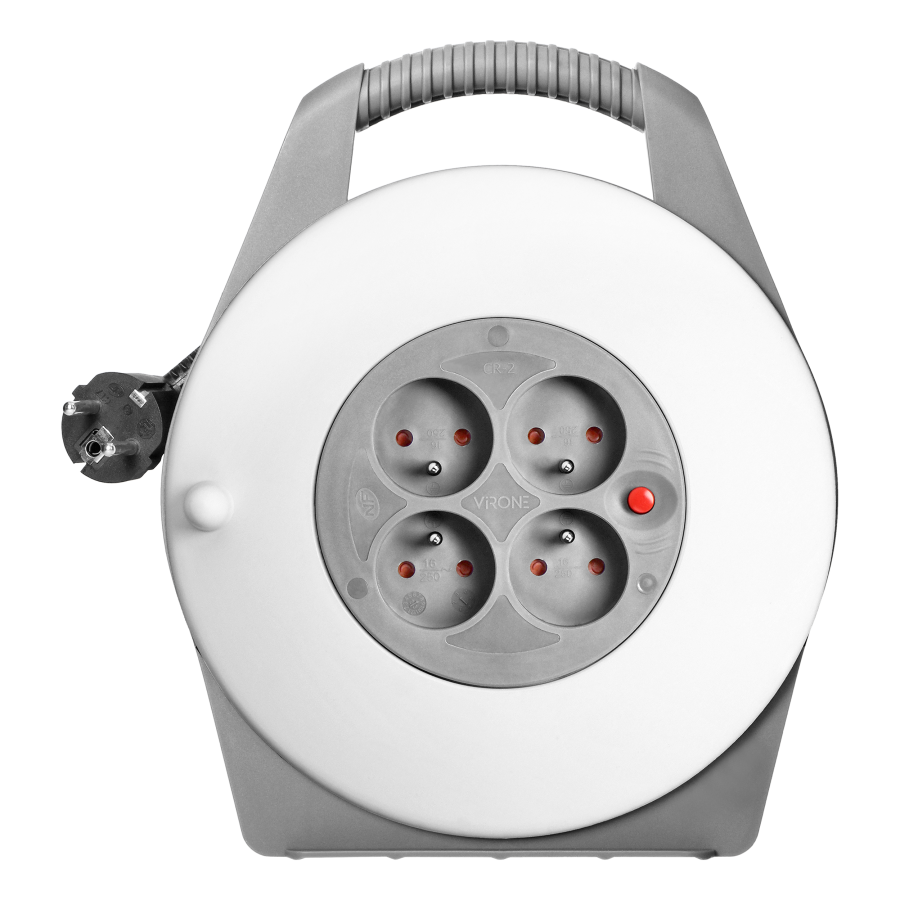

The cable reel is an indispensable tool for easily and safely extending the power supply in the home or office. It is equipped with 4 French-type mains sockets (2P+E), which allow different devices to be connected at the same time. Thanks to the cranked cable reel and the convenient carrying handle, the device is not only functional, but also easy to use and store.
The extension cable has built-in thermal protection, which reacts to a current overload to protect connected devices. In addition, the sockets are equipped with safety shutters to prevent the accidental insertion of foreign objects, which provides additional safety. The maximum load is 900W/3.9A for the rolled cable and 2300W/10A for the unrolled cable.
The IP20 protection level allows the device to be used indoors in dry, not damp areas.
The cable length (type H05VV-F) is 10 m with 3 conductors of 1 mm². The dimensions of the whole unit are 80x225x280 mm. Made of robust PVC. Grey color.
| General information: | |
|---|---|
| Material housing: | Tworzywo sztuczne |
| Cable assembly: | H05VV-F |
| Core cross section [mm²]: | 1 |
| Number of cores: | 3 |
| Cable length [m]: | 10 |
| Degree of protection (IP): | 20 |
| Colour: | Szary |
| Supply voltage: | 230V~, 50Hz |
| Socket type: | 2P+Z |
| Max. Load/current cable coiled: | 900W / 3,9A |
| Socket standard: | french (typ E) |
| Number of network sockets: | 4 |
| Max. Load/current cable unwound: | 2300W / 10A |
| Shutters for current paths: | Tak |
| Dimensions - depth [mm]: | 80 |
| Dimensions - width [mm]: | 225 |
| Dimensions - height [mm]: | 280 |
| Insulation type: | PVC |
