Energy meters without MID

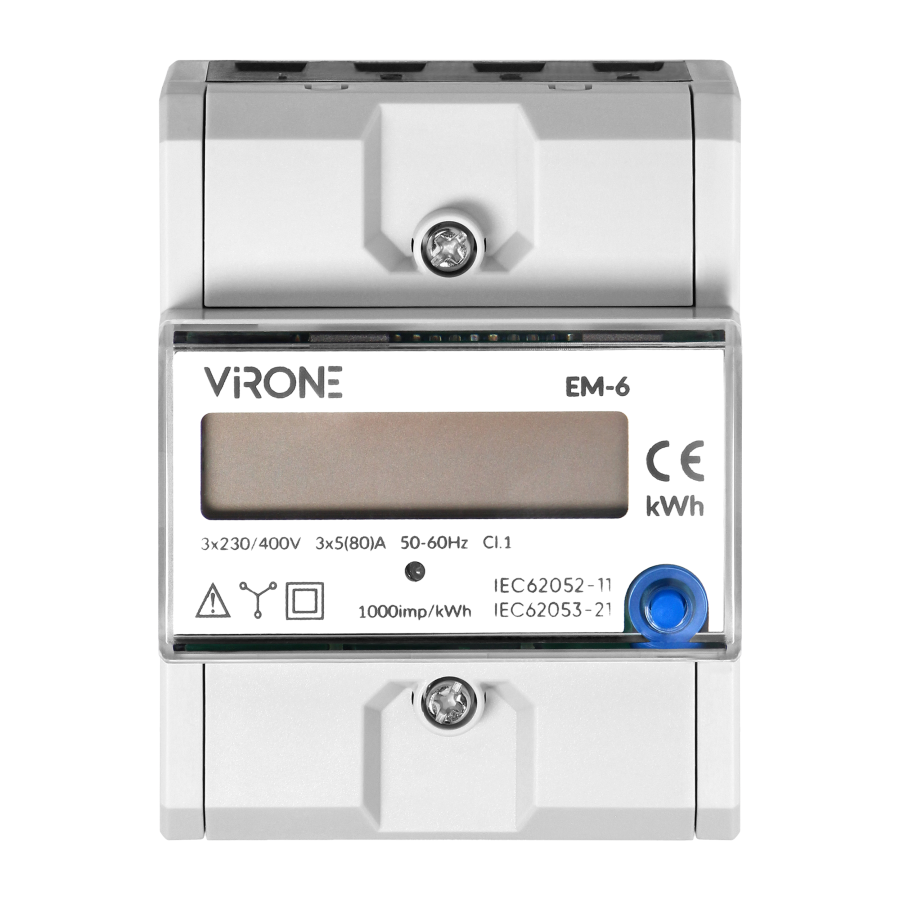

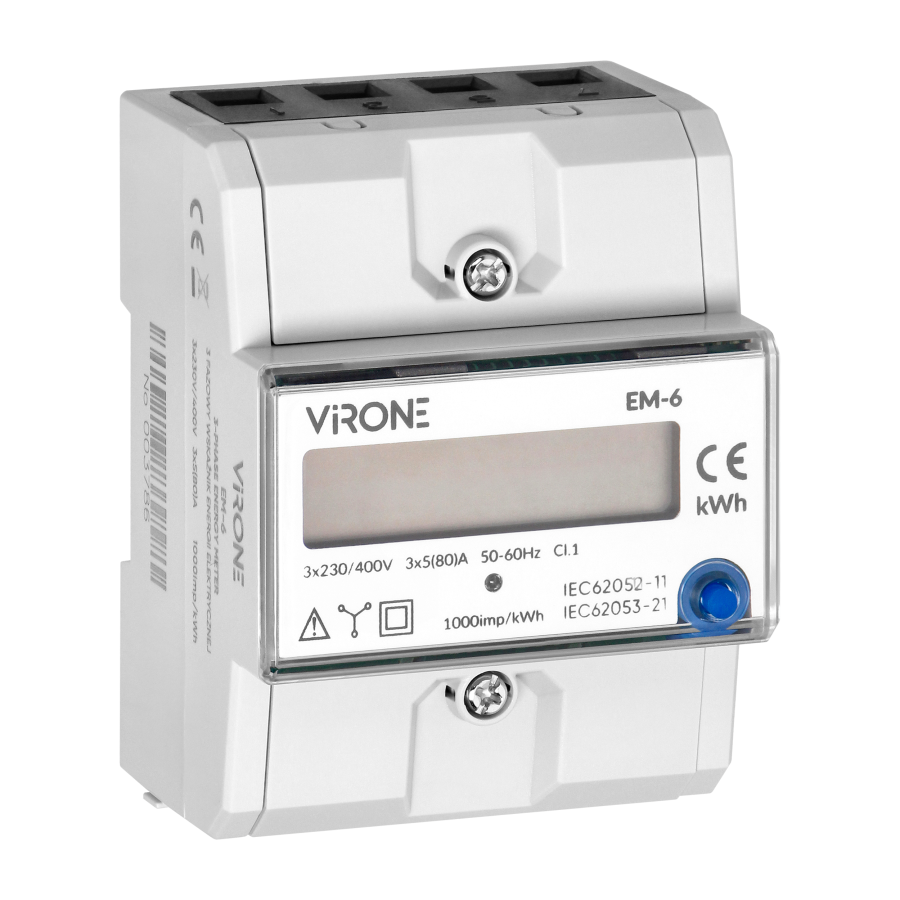

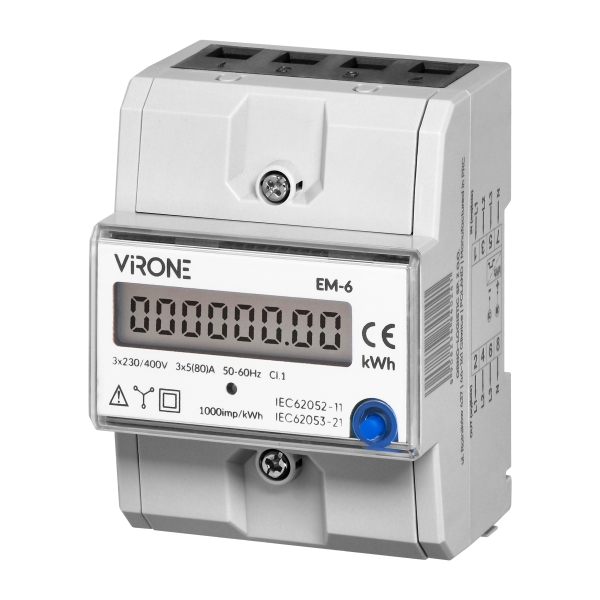

Three-phase energy indicator 80A, is a device that enables precise monitoring of electricity consumption in three-phase systems. It is equipped with an additional counter for monitoring periodic energy consumption and a pulse output that allows the indicator to control additional external devices, e.g. measuring the energy consumption of a washing machine/cleaning cycle or measuring the energy consumption of charging an electric car.

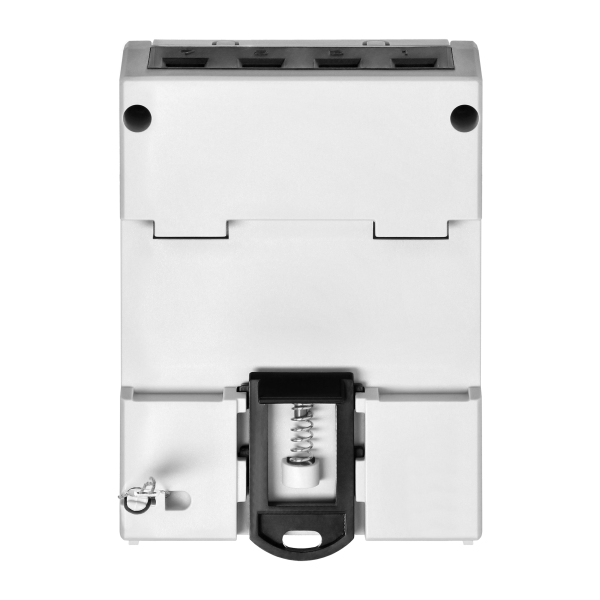

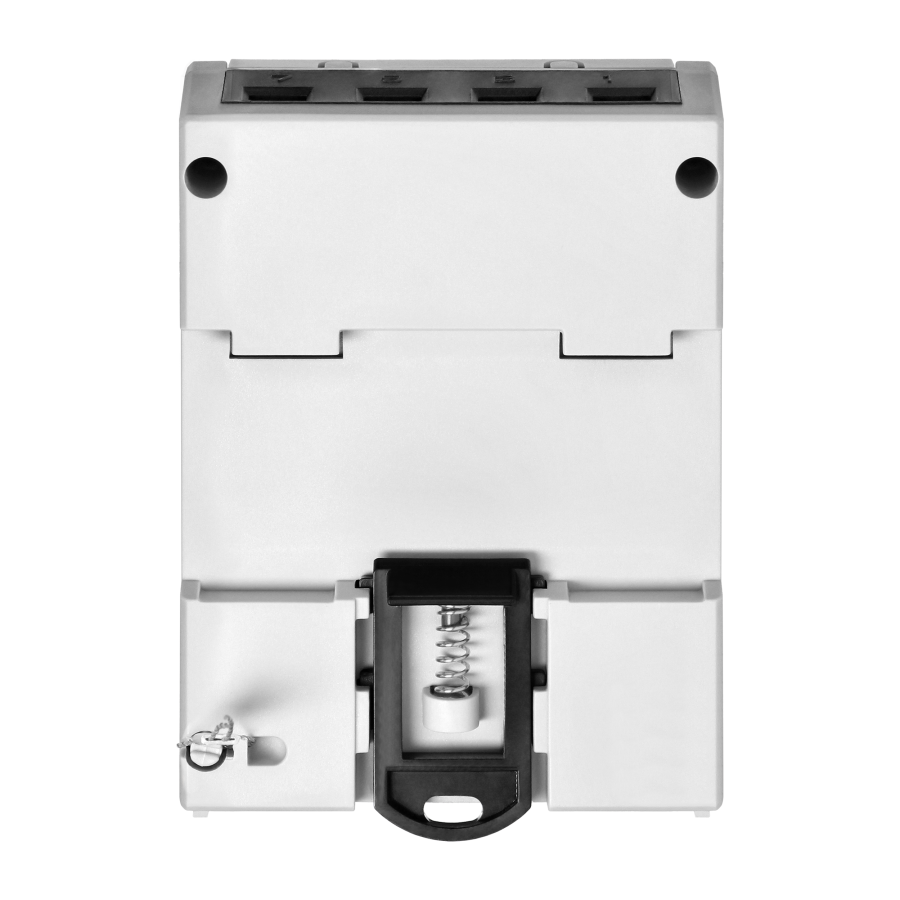

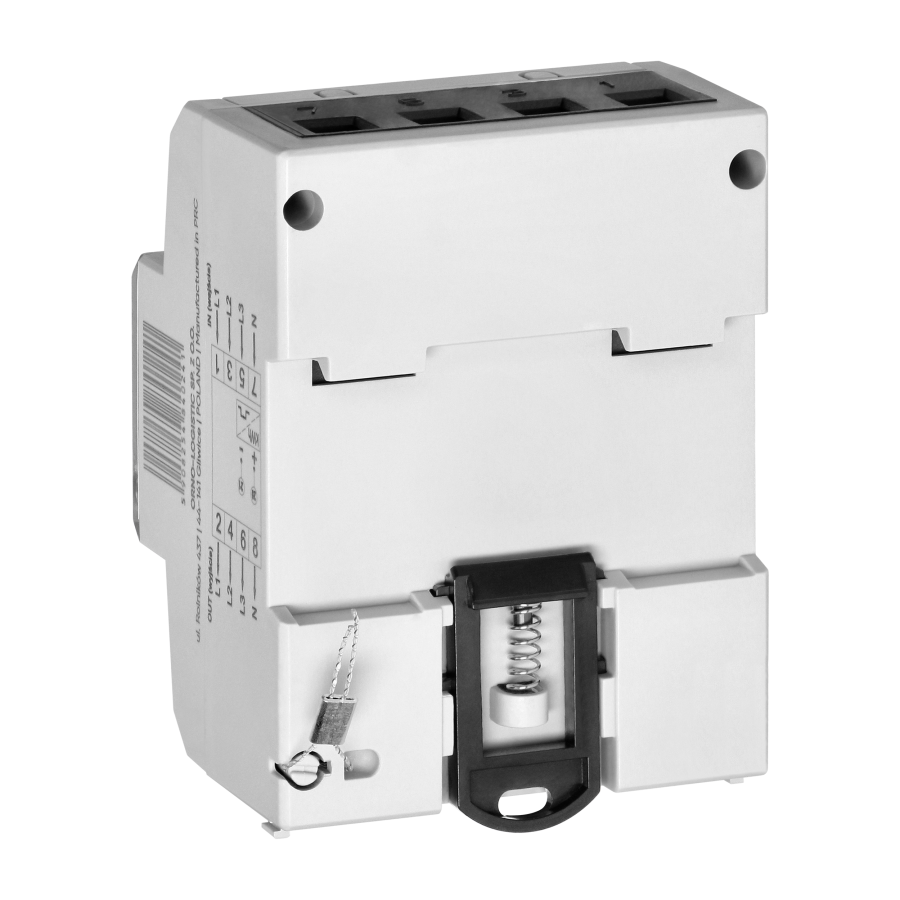

A RESET button makes it easy to reset the measurement of the additional counter and re-start monitoring, and the 4.5-module-wide housing makes it very easy to install and fits perfectly into standard modular enclosures fitted with a TH-35 DIN rail.
With an energy consumption indicator, you can proactively manage your energy consumption and optimise costs. This is particularly valuable for many industries and businesses for which energy is one of the largest costs.
| General information: | |
|---|---|
| Type of meter: | Elektroniczny |
| Nominal current (In) [A]: | 5 |
| Max. current (Imax) [A]: | 80 |
| : | 230/400 |
| Nominal voltage (Un) N-L [V]: | 230 |
| Nominal voltage (Un) L-L [V]: | 400 |
| Frequency [Hz]: | 50/60 |
| Accuracy class: | B |
| Pole type: | 3 |
| Model: | Trójfazowy czteroprzewodowy |
| Energy type: | Moc czynna |
| Suitable for: | Pobór |
| Escapement mechanism: | Tak |
| Calibrated: | Nie |
| Pulse output: | Elektryczny |
| Pulse type: | S0 |
| Pulse rate [lmp/kWh]: | 1000 |
| Type of indication: | Cyfrowy |
| Mounting method: | Adapter szyny DIN |
| Width in number of modular spacings: | 4,5 |
| Width [mm]: | 75 |
| Depth [mm]: | 65 |
| Height [mm]: | 100 |
| Temperature Range: | -25~+55 |
| Number of positions total (counter): | 6+2 |
| Degree of protection (IP): | 51 |
