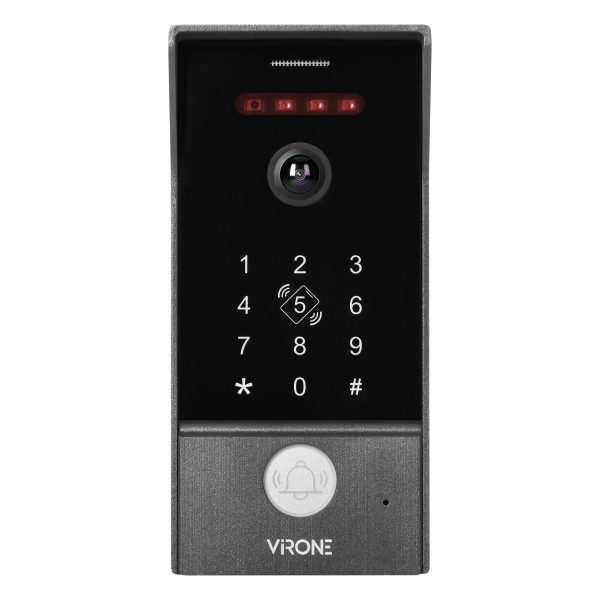

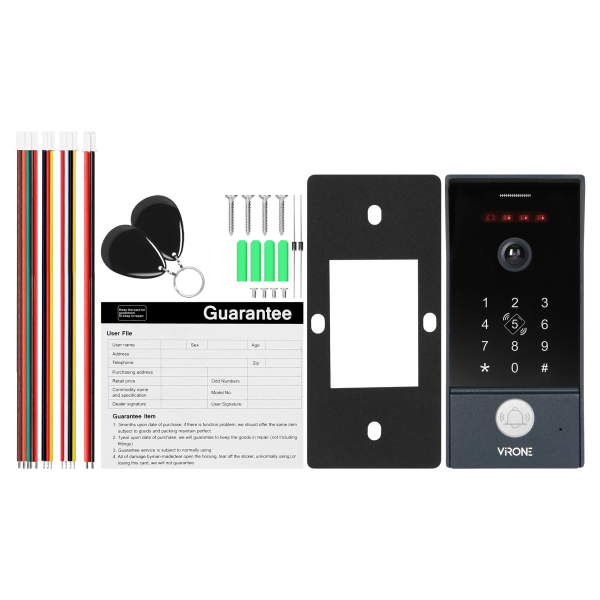

The single-family video outdoor unit to expand the MAILO set has an advanced system of entrance control. The integrated features, such as wicket control, card and RFID tag reader as well as a code lock ensure convenience and safety of use. Frequency of proximity cards and tags (Mifare 13,56MHz) guarantees quick operation eliminating the need of looking for the keys or a gate remote control. Additionally, gate and wicket may be managed via monitor and mobile Tuya Smart app, which boosts the convenience while using the system.

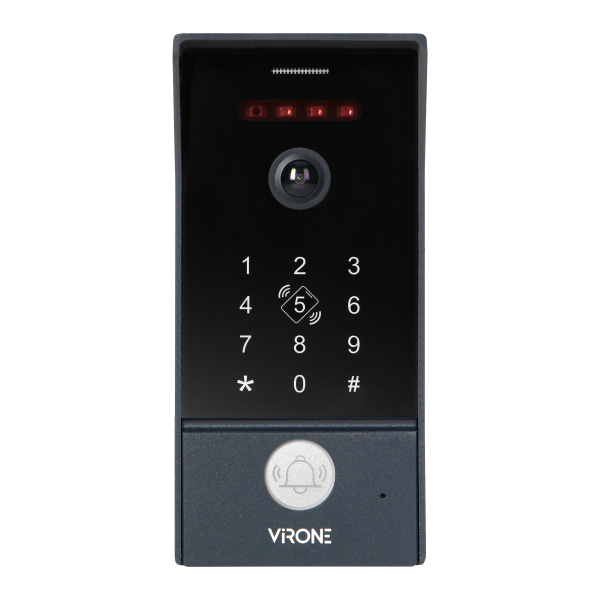

The built-in Full HD camera with the resolution of 2MP, 1920x1080, 1080p and a very wide viewing angle (144° horizontally, 81° vertically) provides a complete picture from behind the wicket. The feature of recording movies and pictures on the microSD card (with max. capacity of 1TB) allows to maintain the recordings even while the household members are away.
The IR night lighting feature guarantees bright and clear picture at night, not blinding a visitor, and the built-in motion sensor detects individuals roaming around the property notifying of the fact via mobile app. The user may call up the camera preview any time, both with the help of monitor or the app.
As there is no need to apply an additional power supply to the electric strike (max. 500A), there are less wires run through a garden making the installation easier and optimized.

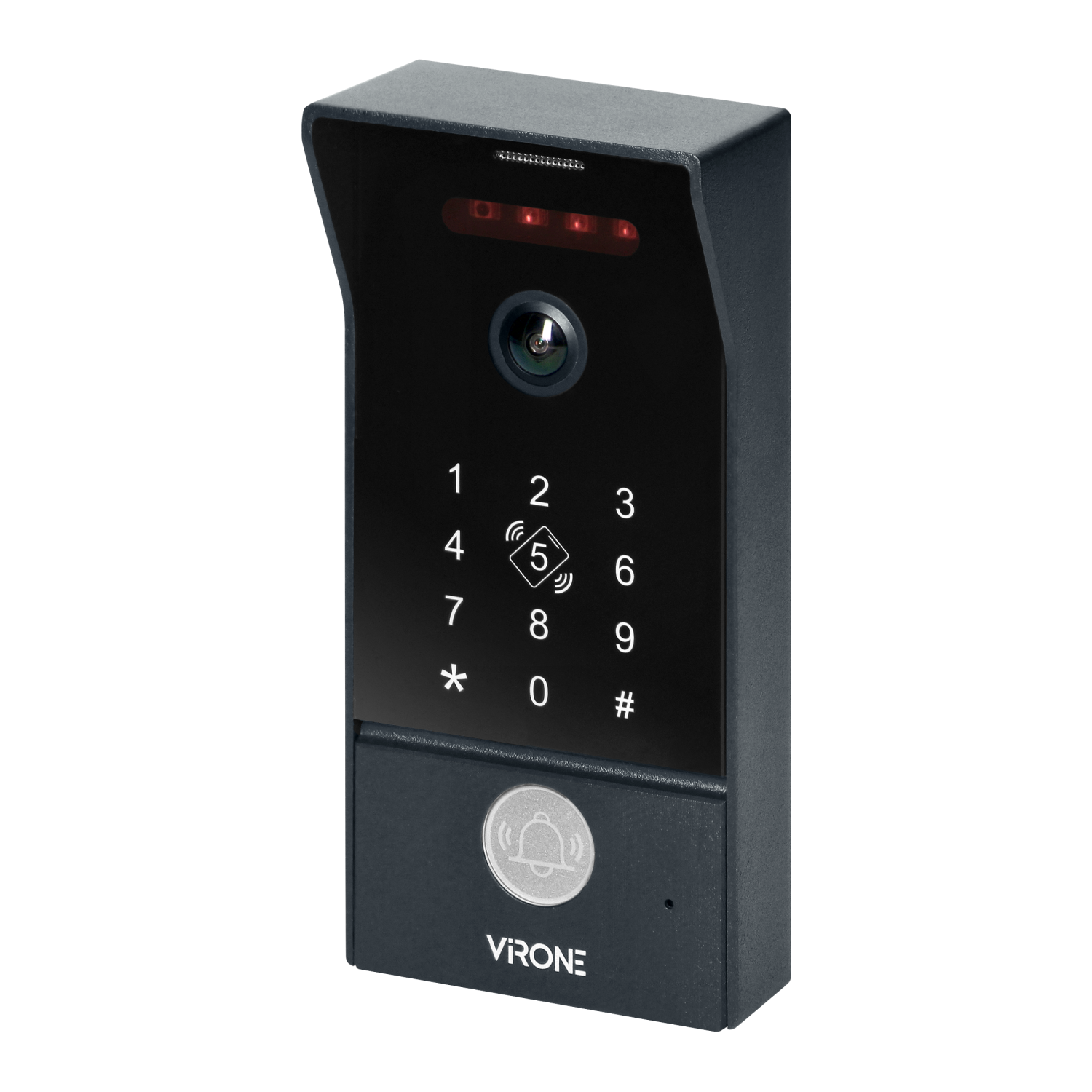

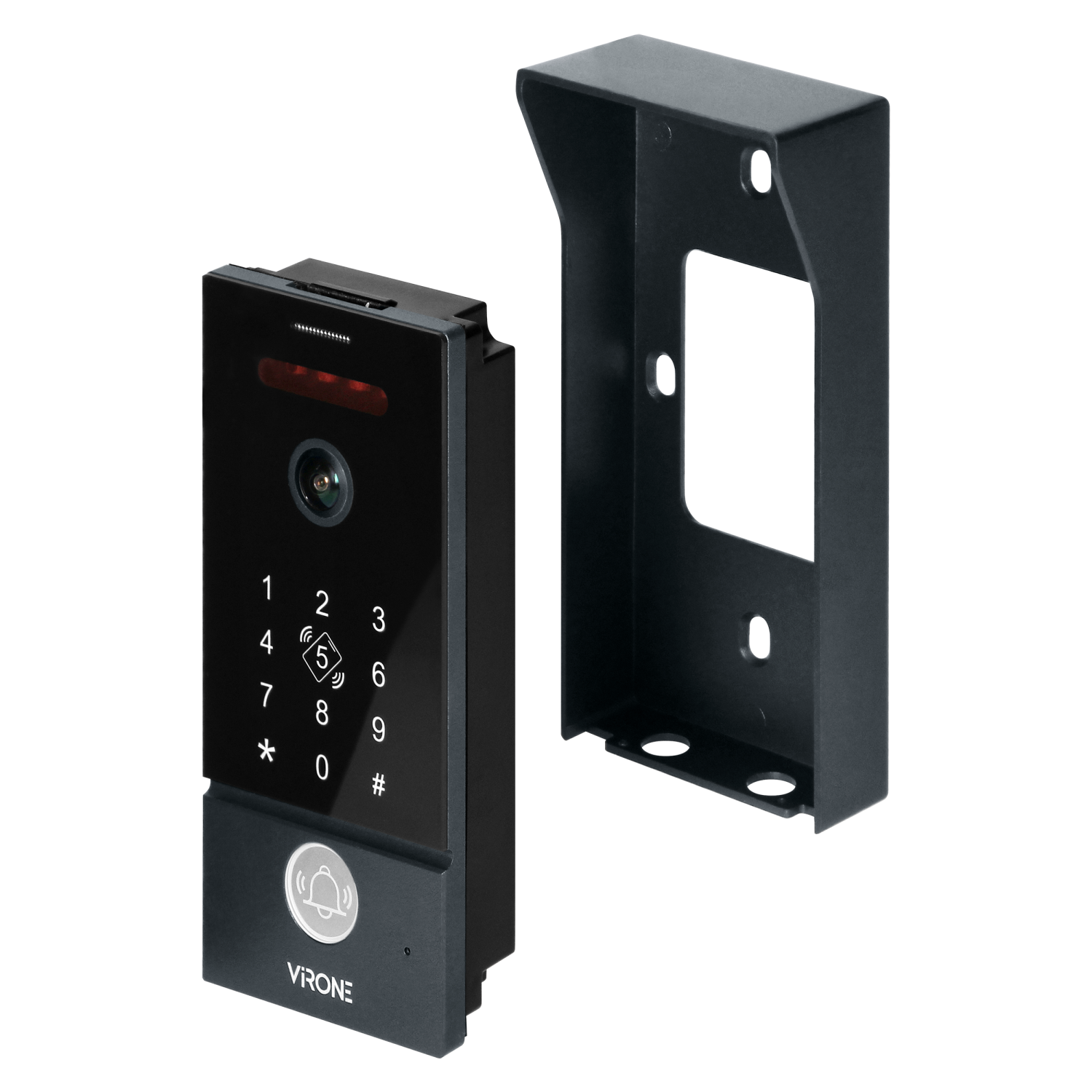

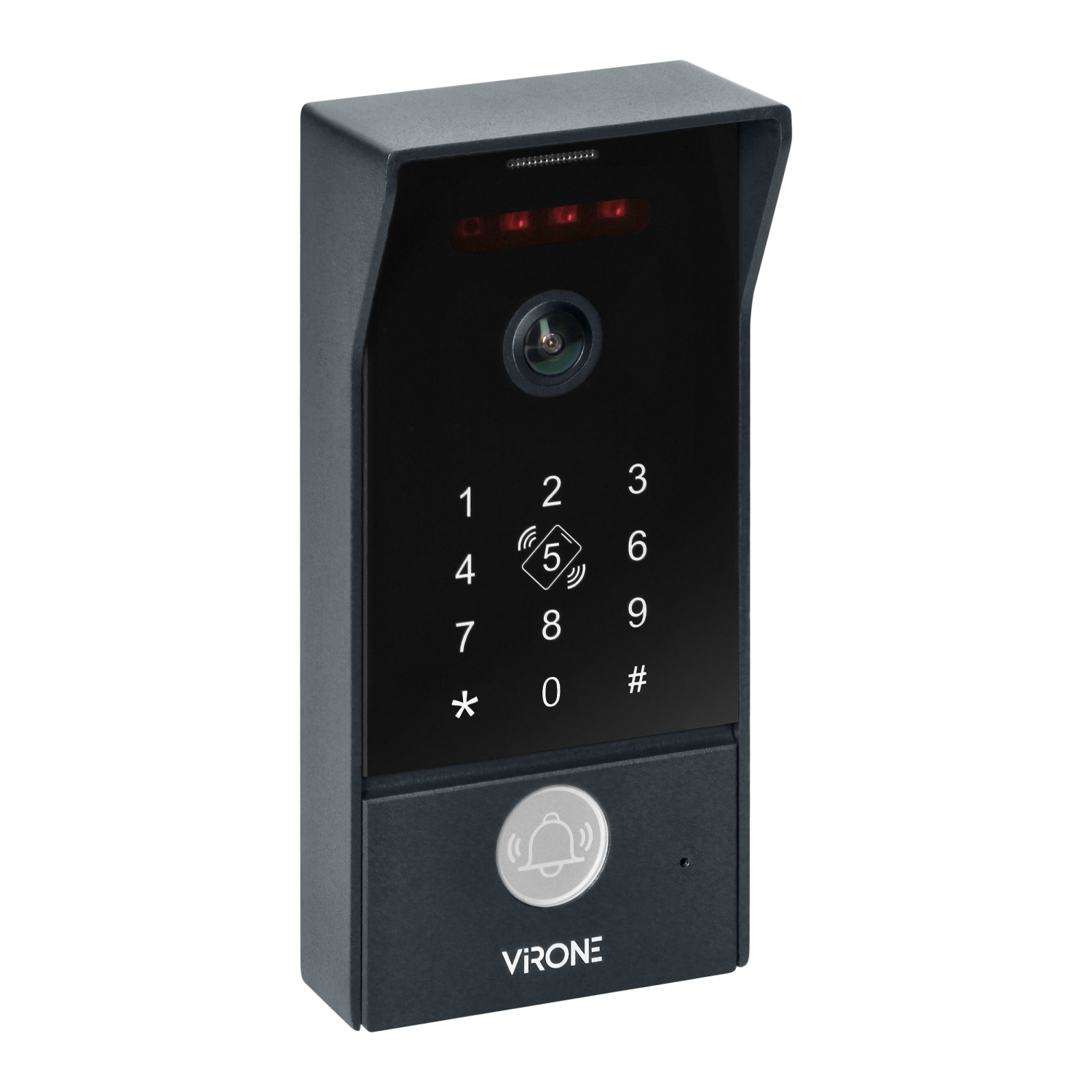

High ingress protection rate IP65 ensures safety of use even in harsh weather conditions, the rain cover protects against splashing, and the durable aluminium of which the outdoor unit is made guarantees durability and long service life.

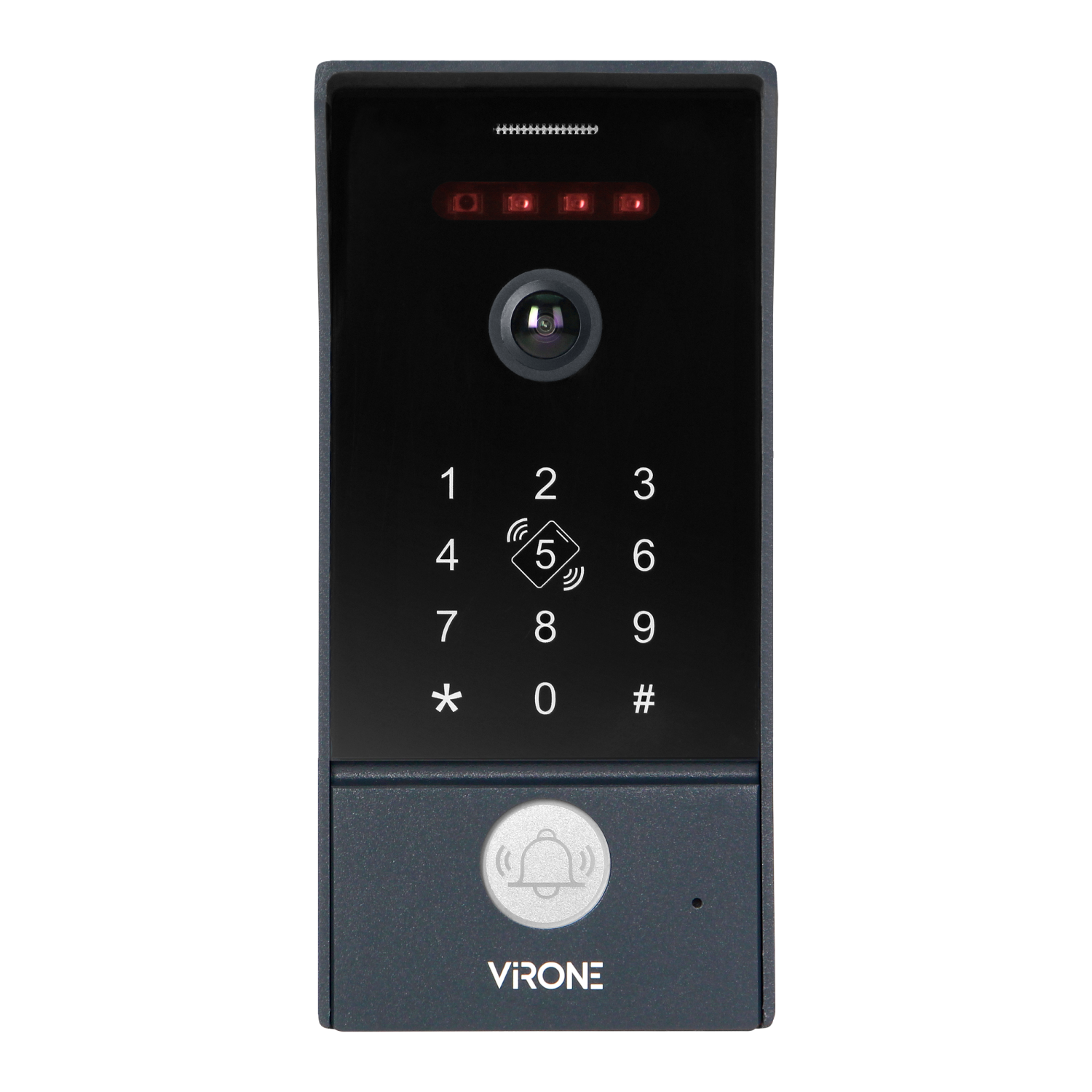

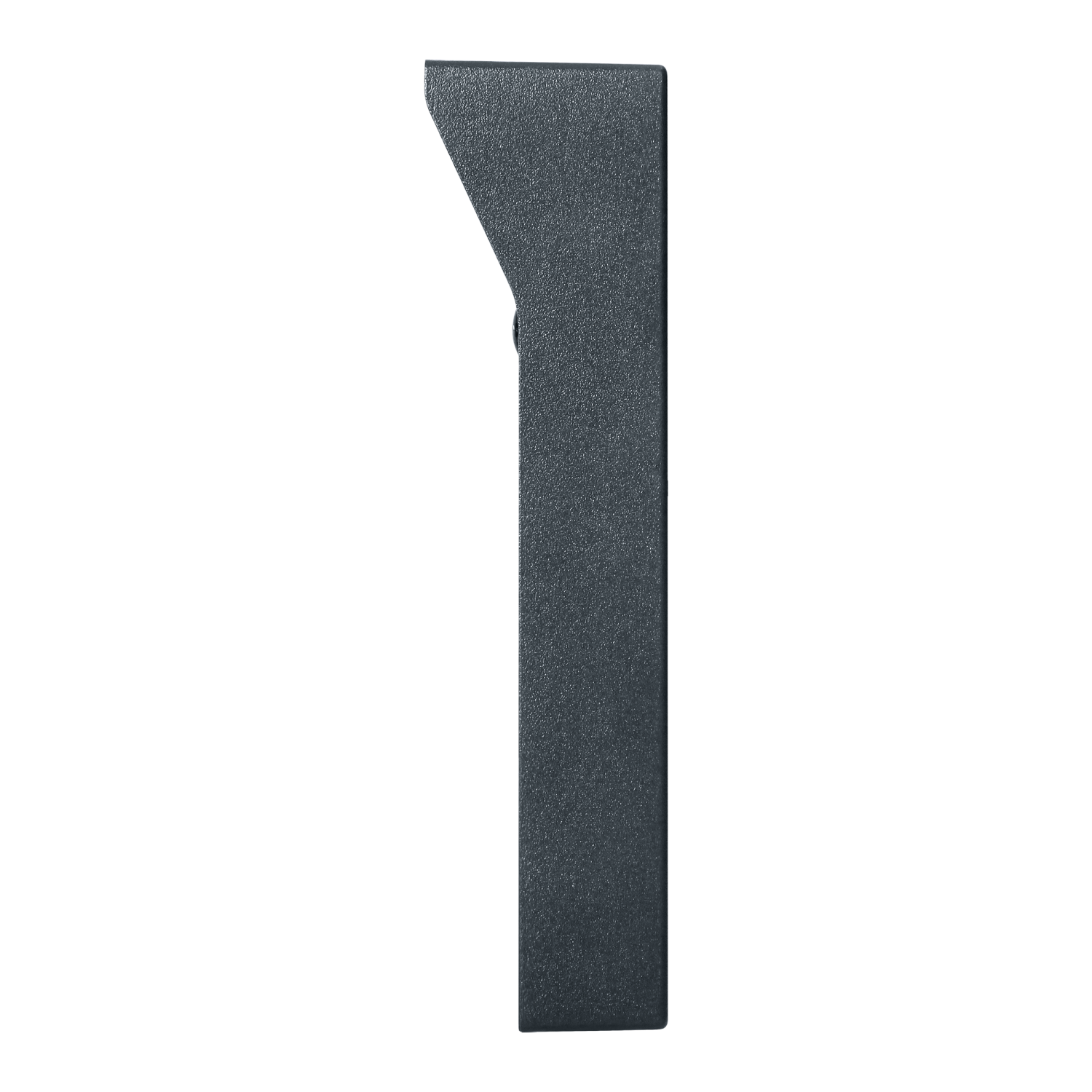

The outdoor unit is graphite and measures 70x146 mm. Surface mounted
The MAILO video doorphone set may be expanded with an additional outdoor unit (max. 2 per set) to mount it at the other entrance in order to boost the household member’s safety.

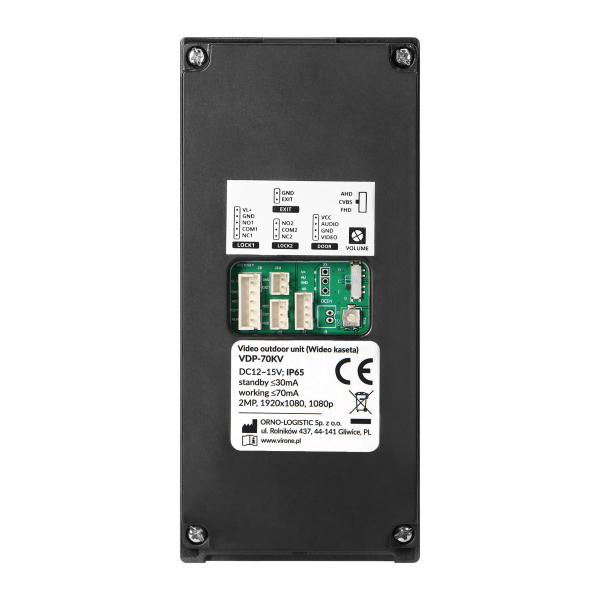

| General information: | |
|---|---|
| Installation technique: | System wieloprzewodowy |
| Number of wires: | 4 |
| Mounting method: | Montaż natynkowy |
| Number of call buttons: | 1 |
| Operation mode: | Przycisk |
| With camera: | tak |
| Resolution of the camera: | 2MP, 1920x1080, 1080p |
| View angle (horizontal) [°]: | 144 |
| View angle (vertical) [°]: | 81 |
| Night lighting: | IR |
| With digital door code: | tak |
| Card and proximity tags reader: | tak |
| RFID tags frequency: | 13,56MHz |
| Label space/information surface: | nie |
| With cover: | tak |
| Degree of protection (IP): | IP65 |
| Material front: | Aluminium |
| Colour: | Srebrny |
| Width [mm]: | 70 |
| Height [mm]: | 146 |
| Depth [mm]: | 36 |
| Other features: | RFID - max. 200 użytkowników (breloki w zestawie: 2 użytkownika/administracyjne) |
