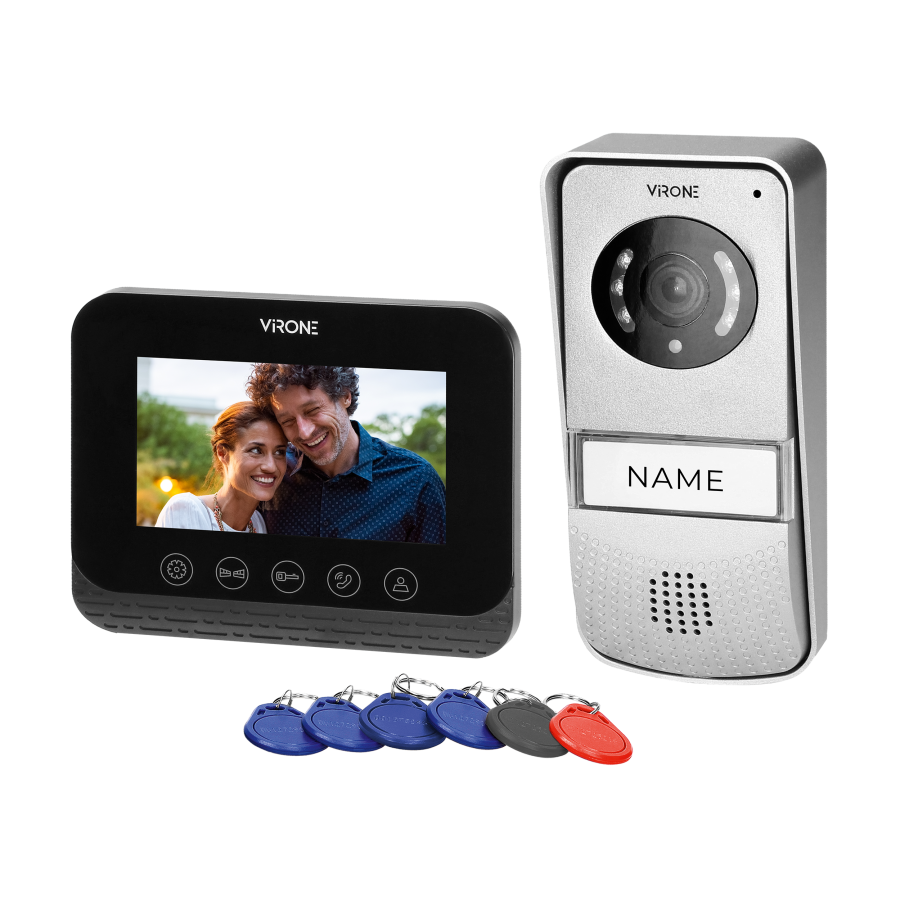

ENIF video doorphone set is designed for installation in single-family houses and does not require any handset. The set includes a multicolour, 4.3” flat LCD monitor that is operated via function touch buttons, and a robust outdoor unit with proximity tags reader. Infrared lighting guarantee excellent night vision. Smooth adjustment of monitor parameters and 6 ringtones to choose from are great assets of this set. The set supports gate and lock opening that are powered directly from the outdoor unit. Upgrading the set with an additional monitor enables intercom communication between the monitors.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 13,5V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 2 |
| Expandable to max. number of outdoor stations: | 1 |
| Expandable to max. number of CCTV cameras: | 0 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |
| Monitor: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 4.3" |
| Screen resolution: | 480x272 |
| Touch screen: | nie |
| Property picture system: | Kolor |
| With memory function: | nie |
| SD card reader: | nie |
| Internal communication: | tak |
| Number of ringtones: | 6 |
| Loudness control: | tak |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Czarny |
| Dimensions of the monitor - Width [mm]: | 134.5 |
| Dimensions of the monitor - Height [mm]: | 109 |
| Dimensions of the monitor - Depth [mm]: | 20 |

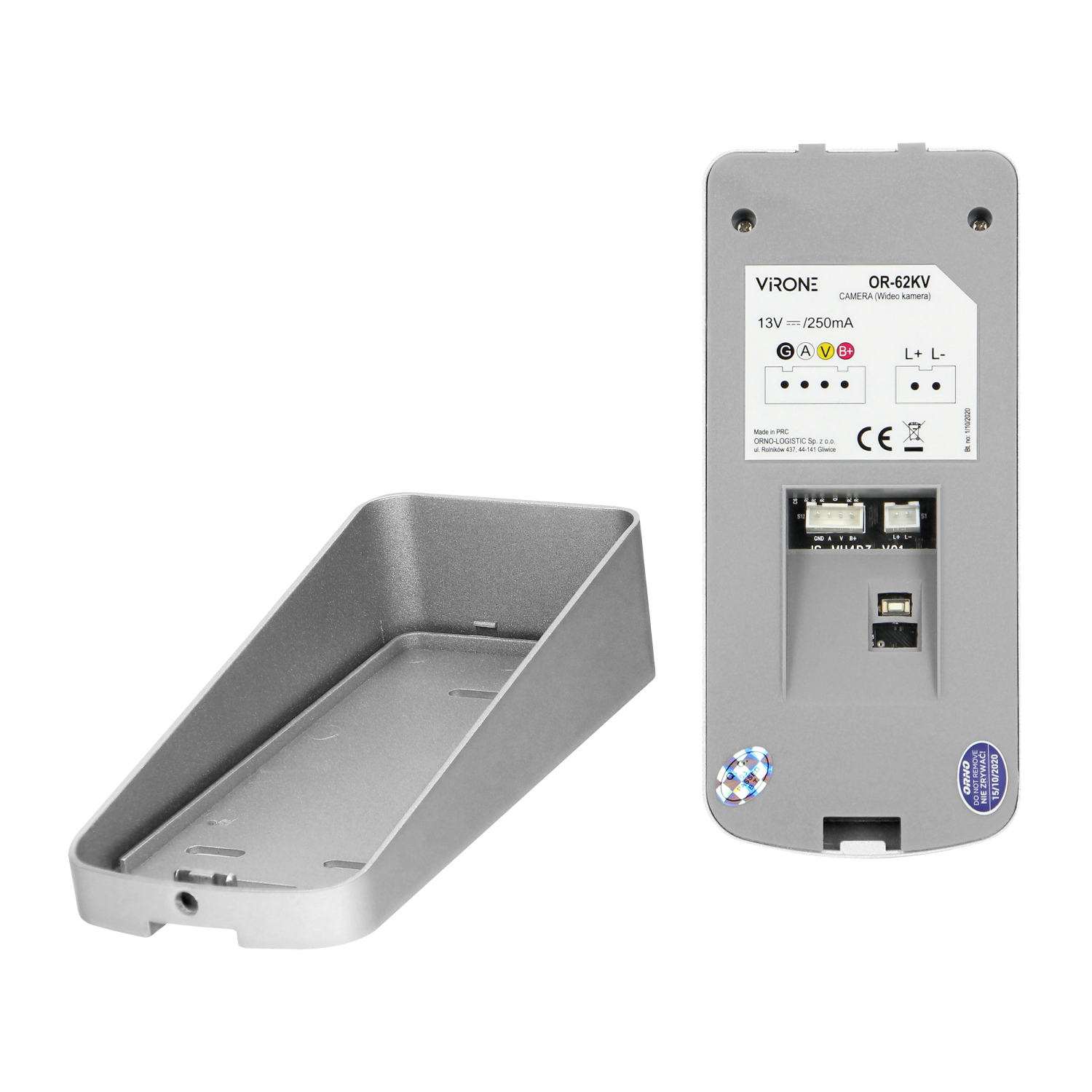

| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 0,3 Mpix |
| Camera view angle (vertical): | 66 ° |
| Camera view angle (horizontal): | 80 ° |
| Night light: | IR |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IP44 |
| Material outdoor station: | Tworzywo sztuczne |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 74 |
| Height [mm]: | 164 |
| Depth [mm]: | 40 |
| Other features: | RFID - max. 10 użytkowników (breloki w zestawie: 4 użytkownika + 2 administracyjne) |
