PAVONIS, a video doorphone set designed for lovers of convenient technological solutions that make life easier. It connects to Wi-Fi and the dedicated Tuya app, making it easy to control entrances and events around the property, even when no one is home, and with the use of an additional SD card, to save recordings and photos of such events.

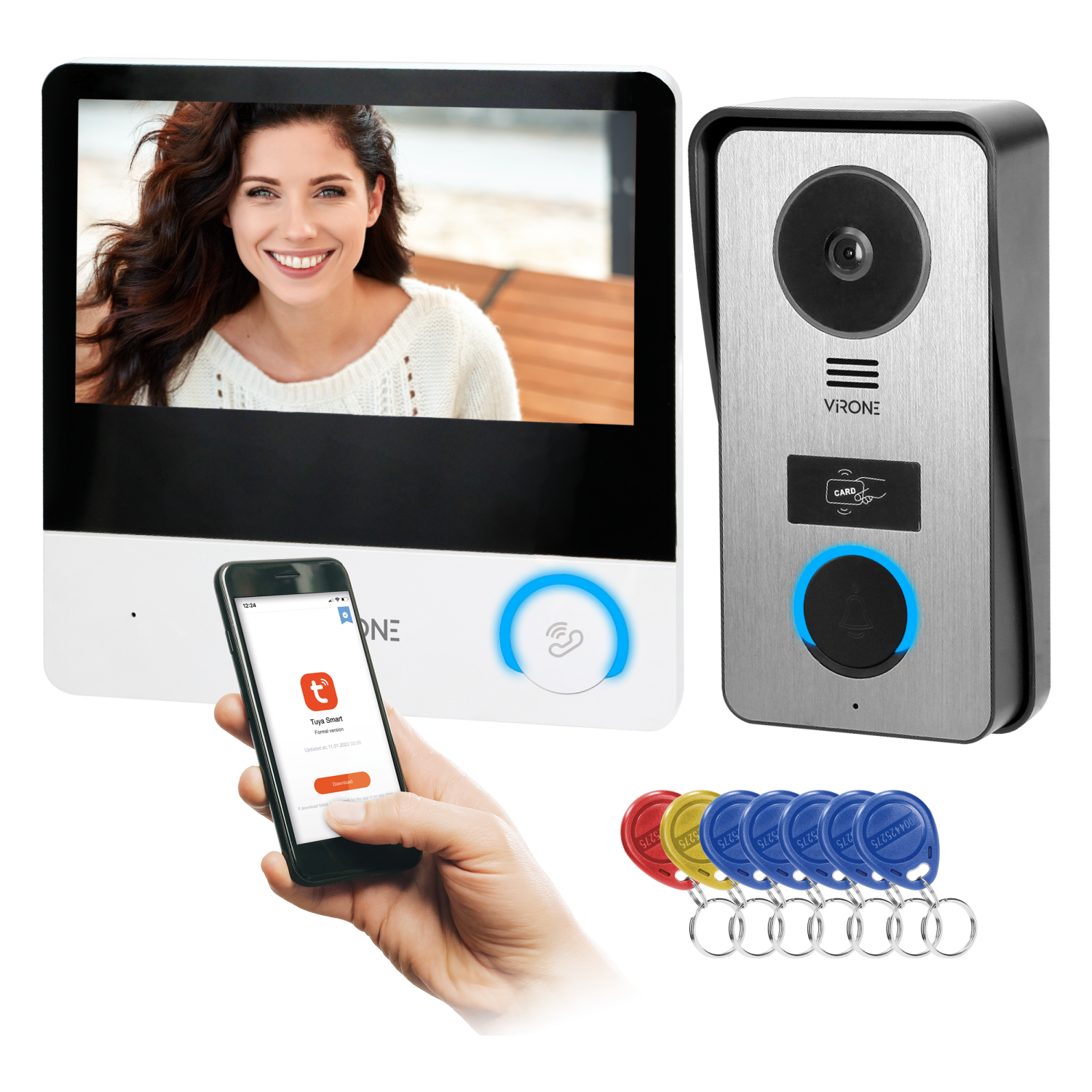

The set consists of a monitor and an outdoor unit.

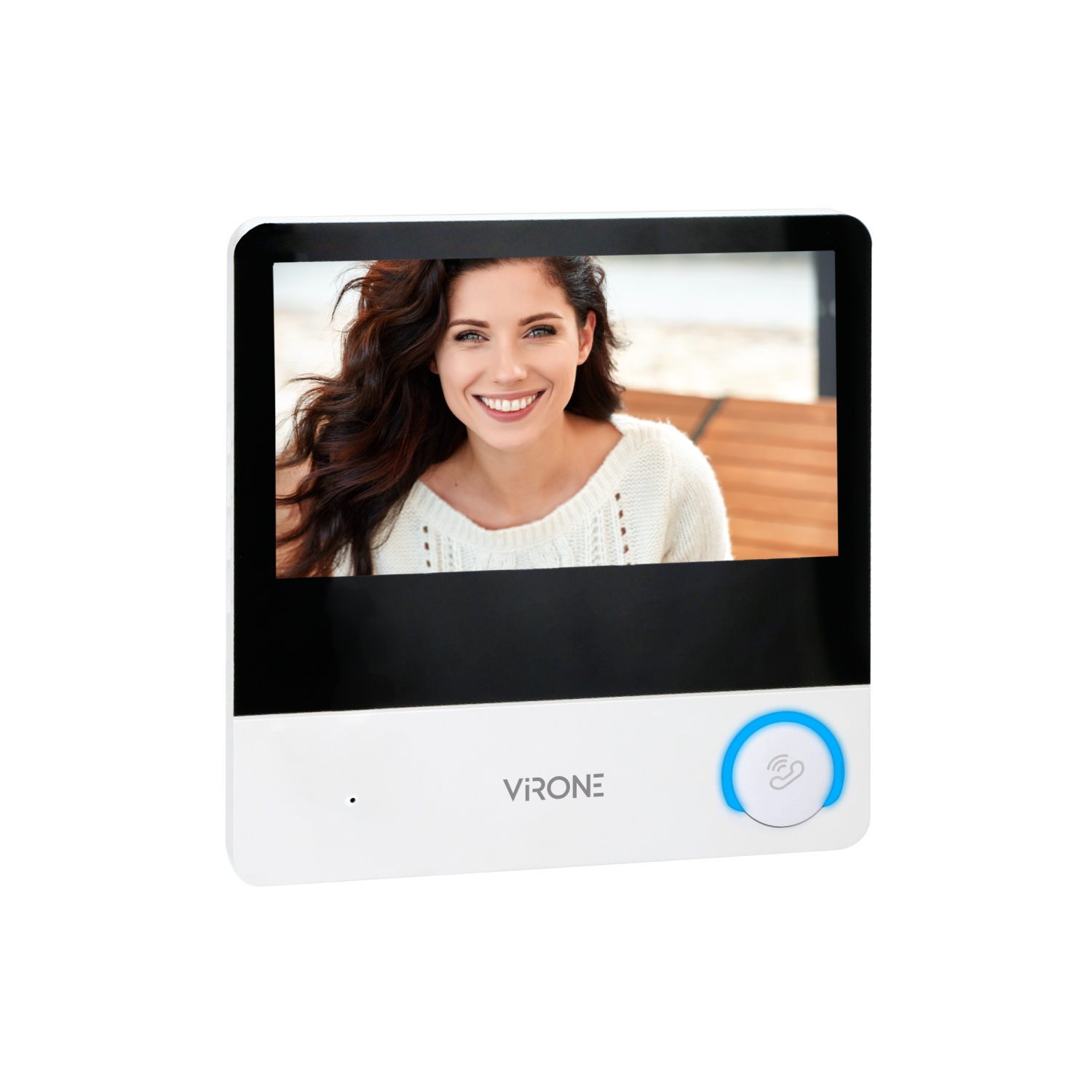

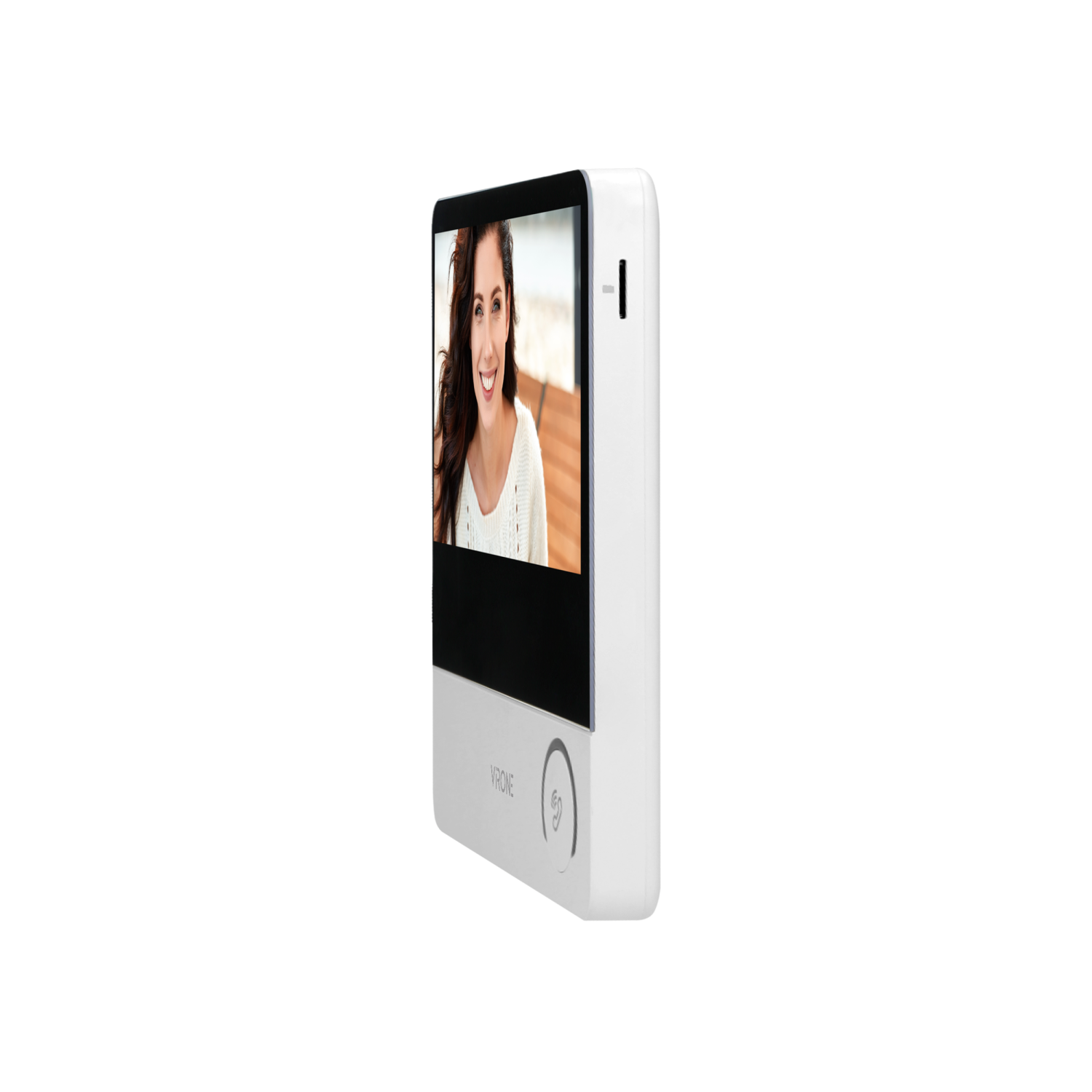

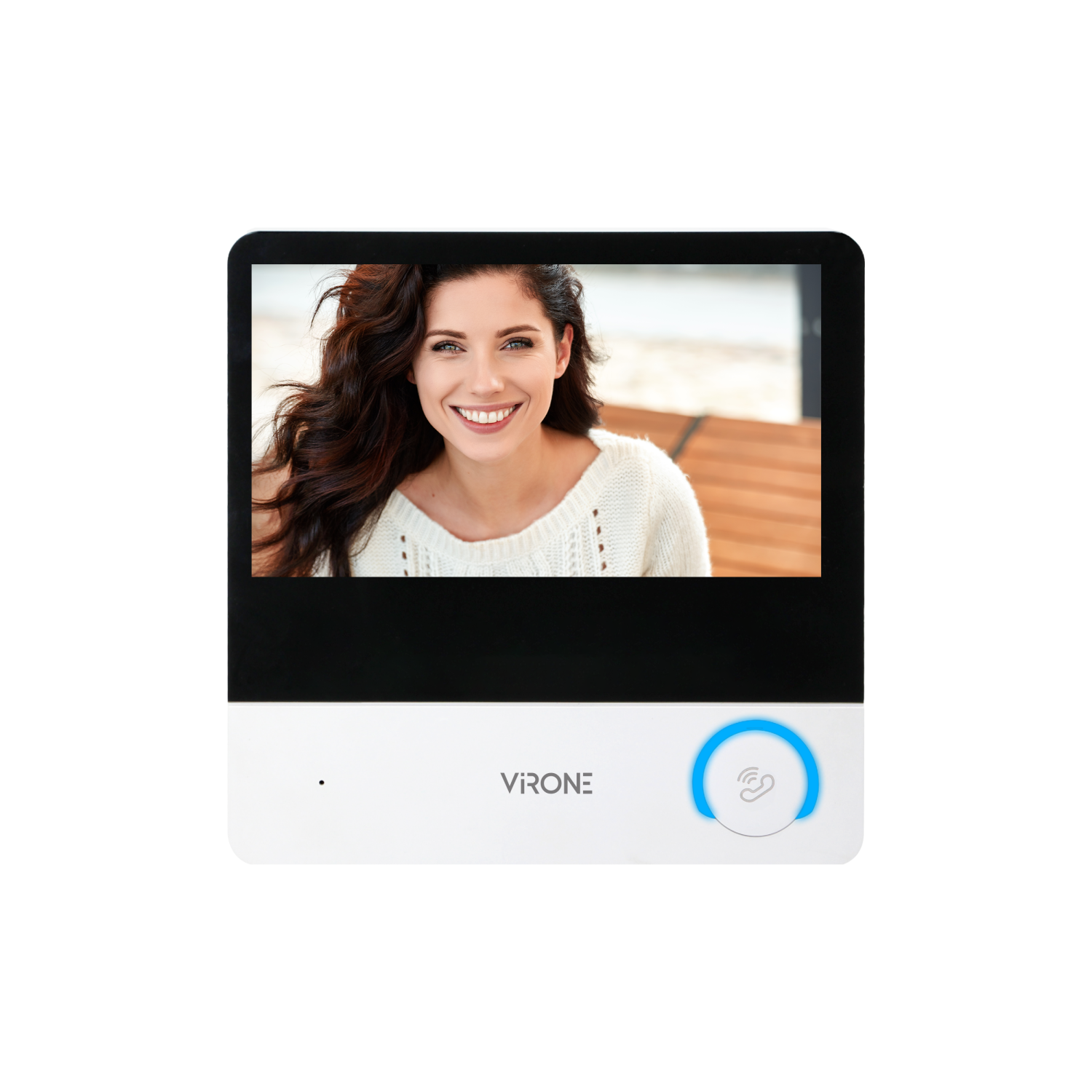

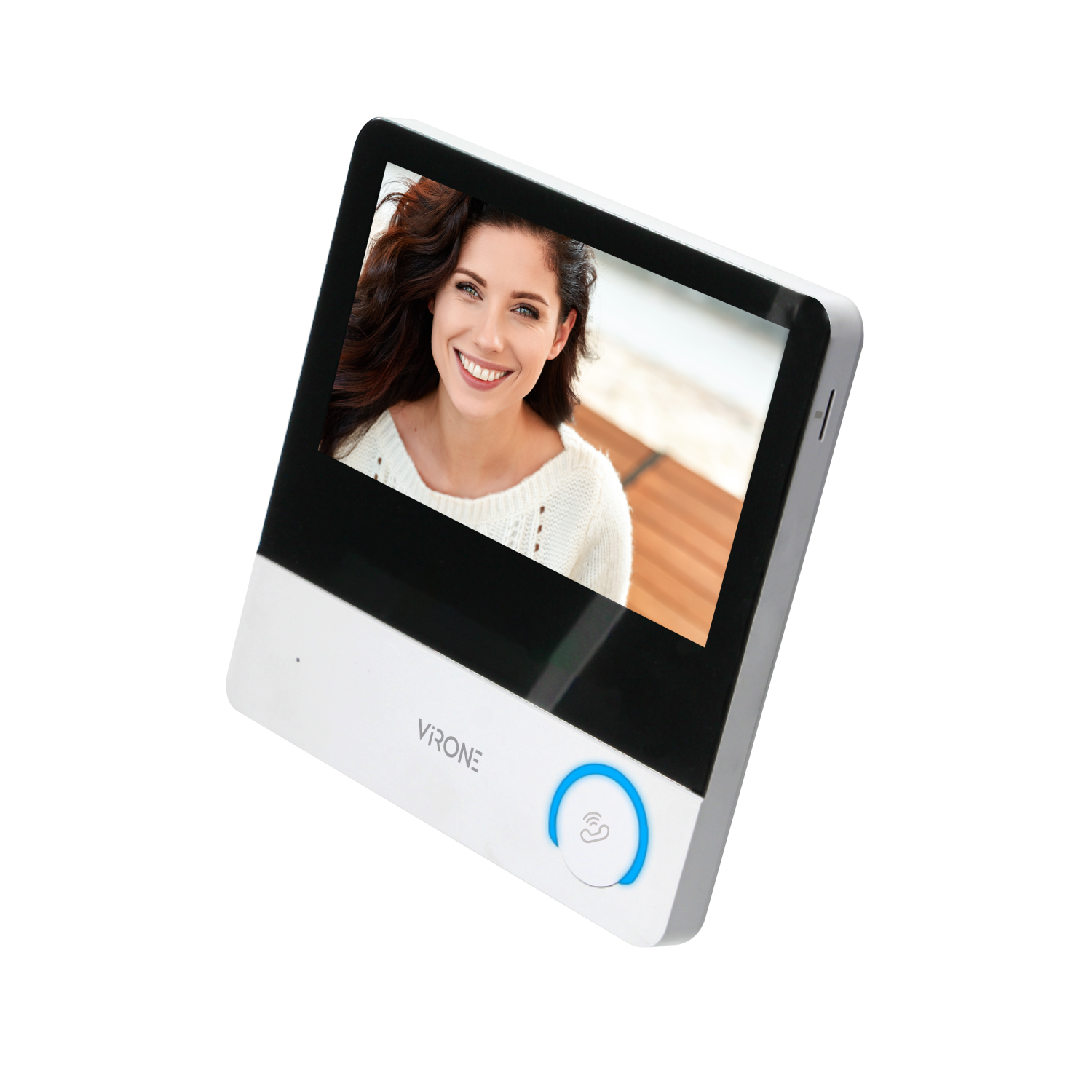

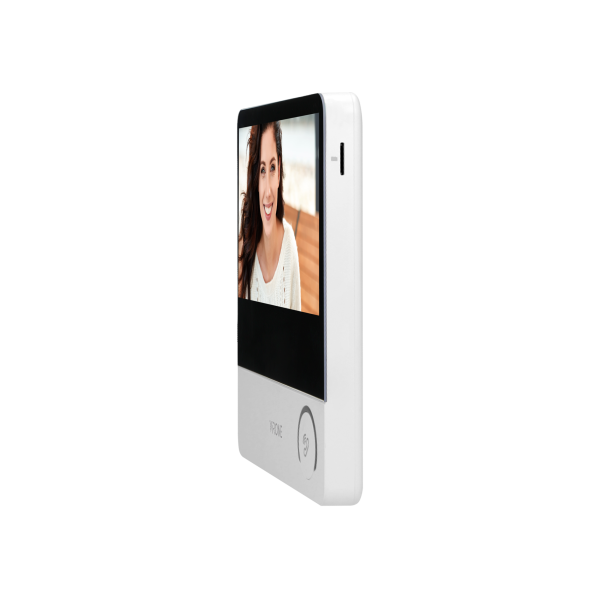

An ultra-slim 7-inch LCD color monitor with touchscreen display and intuitive navigation allows you not only to easily check who is visiting you, but also to manage the photo register, answering machine, call volume, mute, weather station or digital frame function.

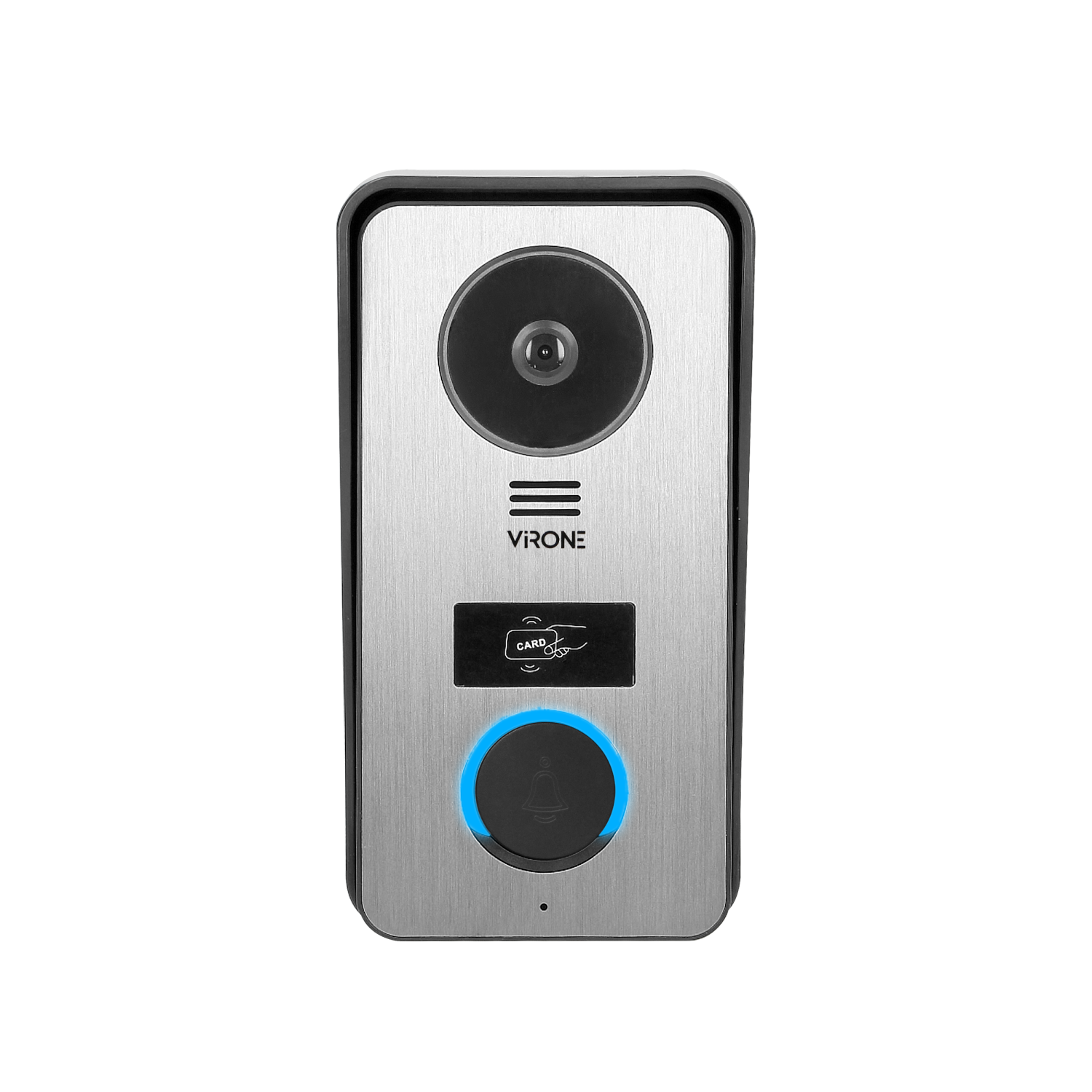

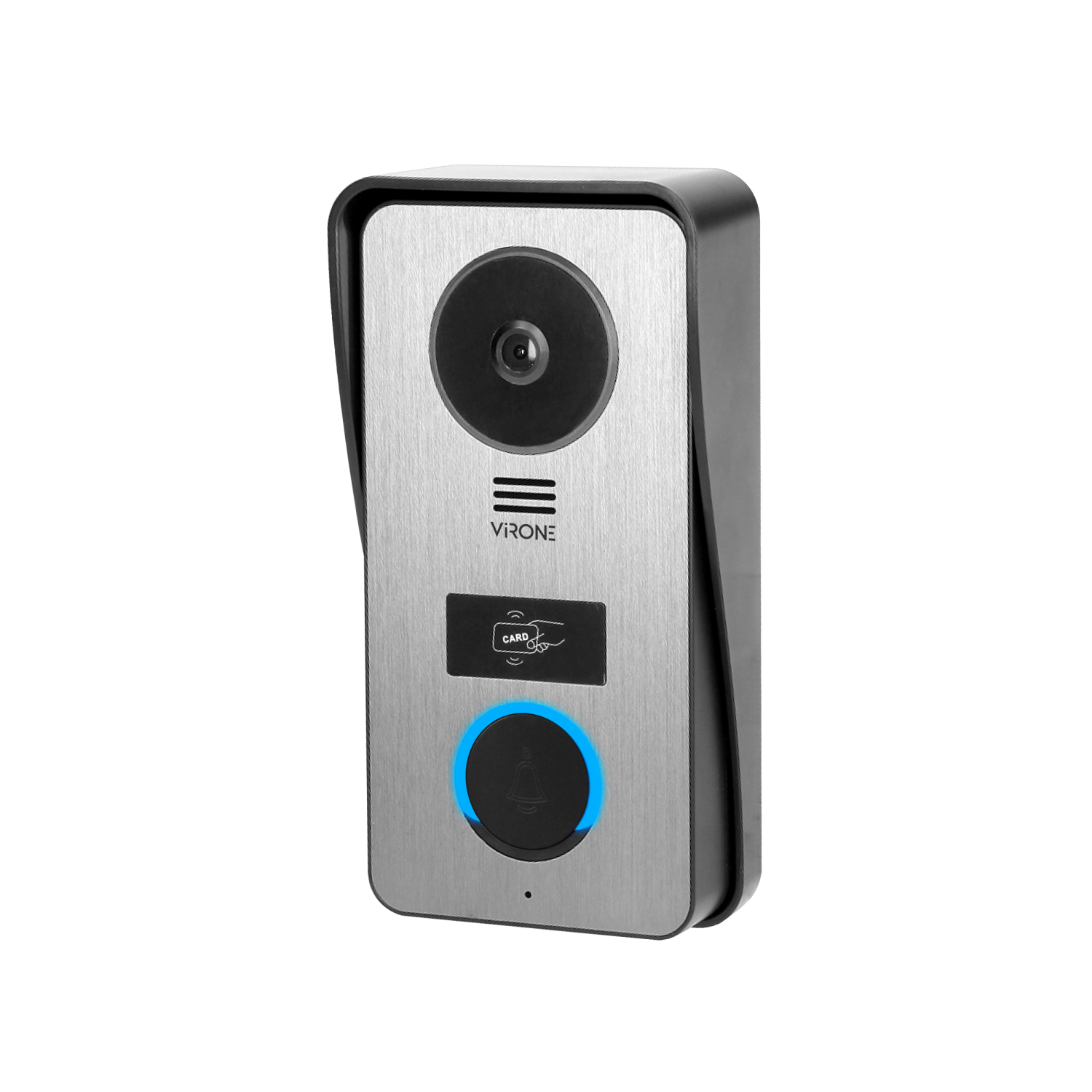

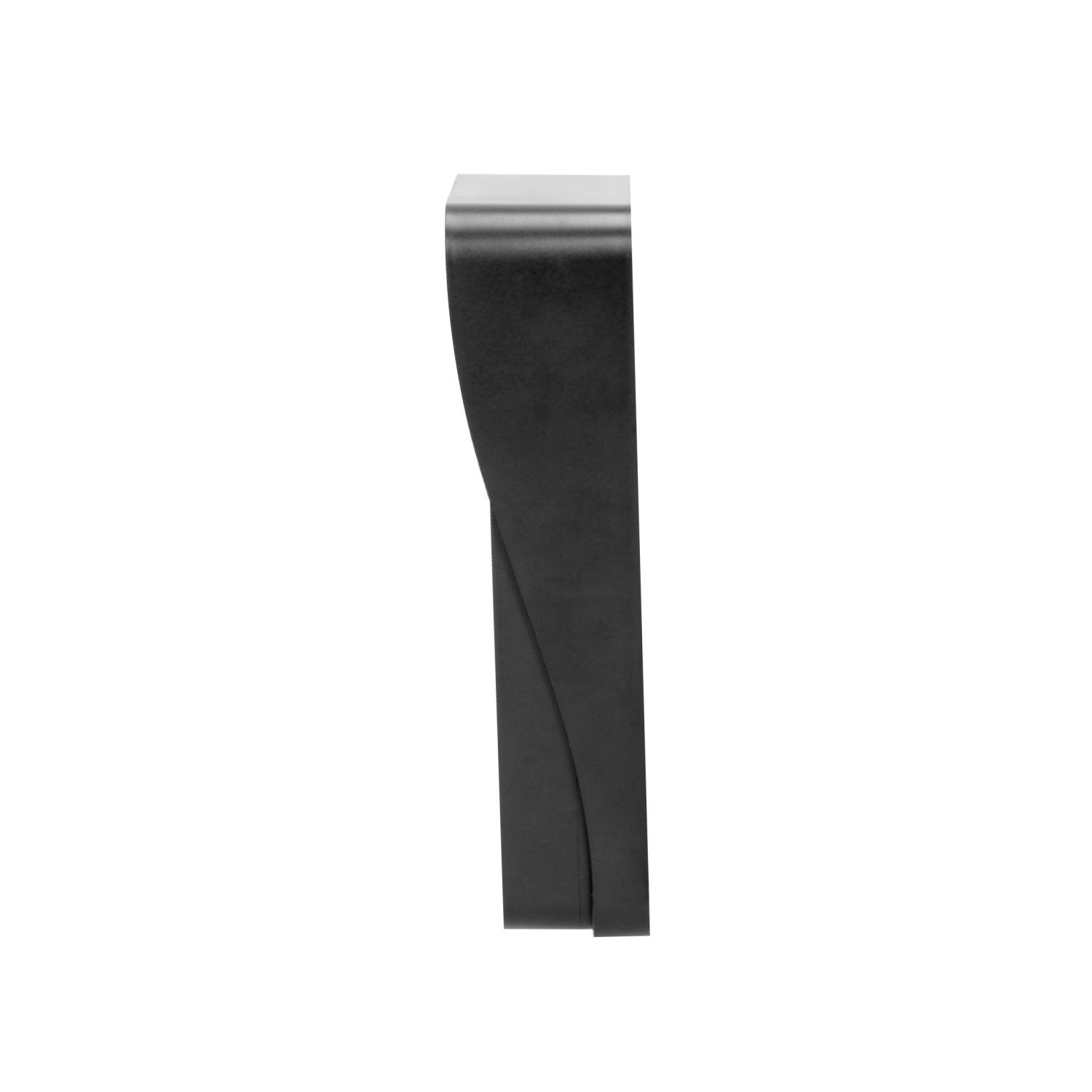

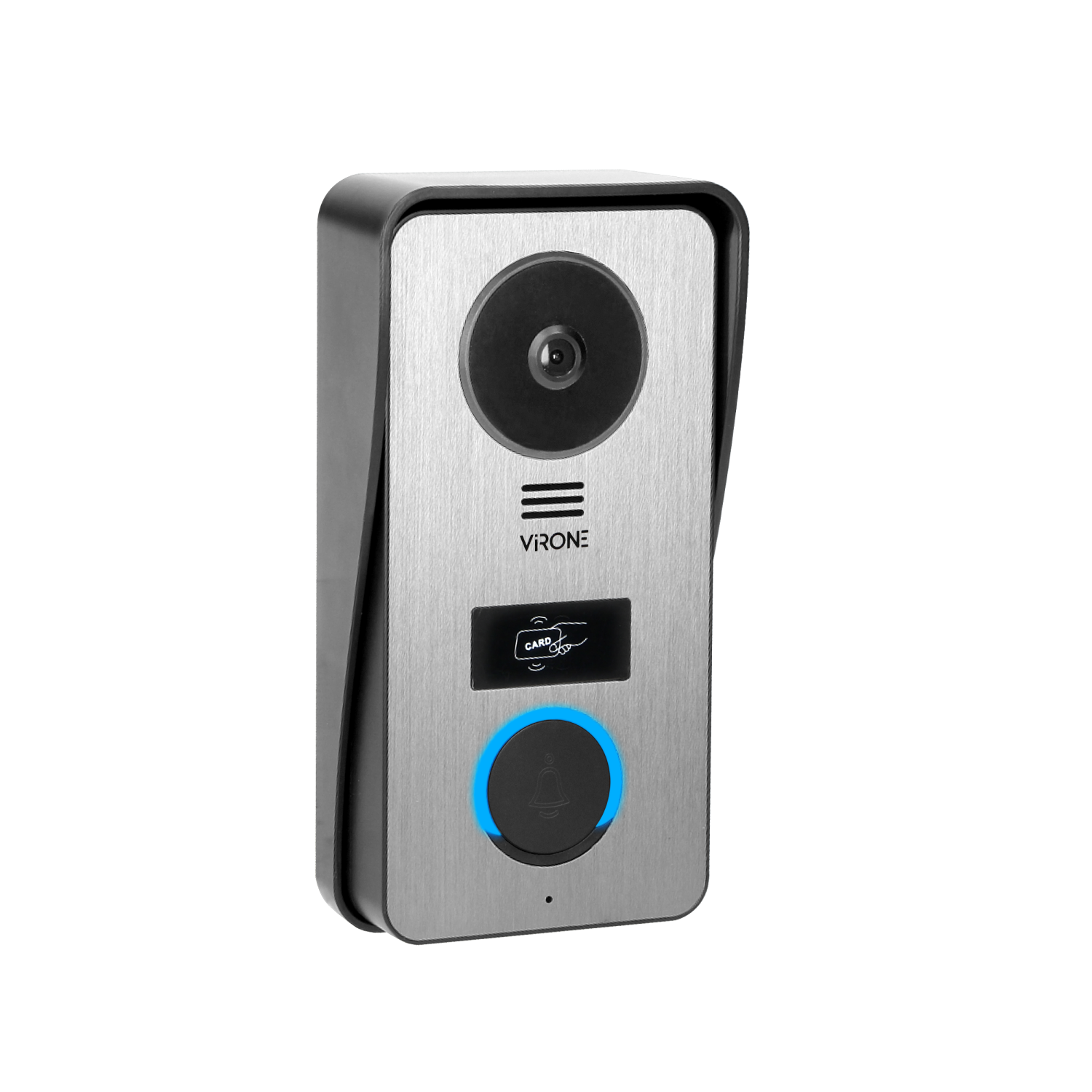

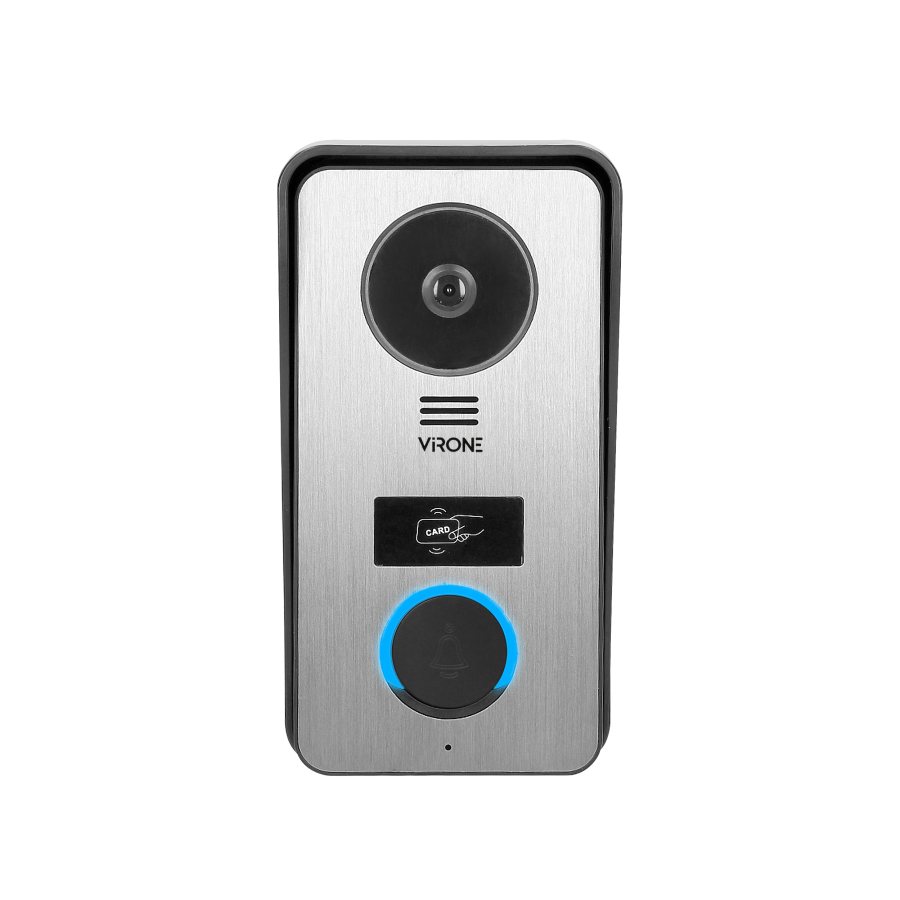

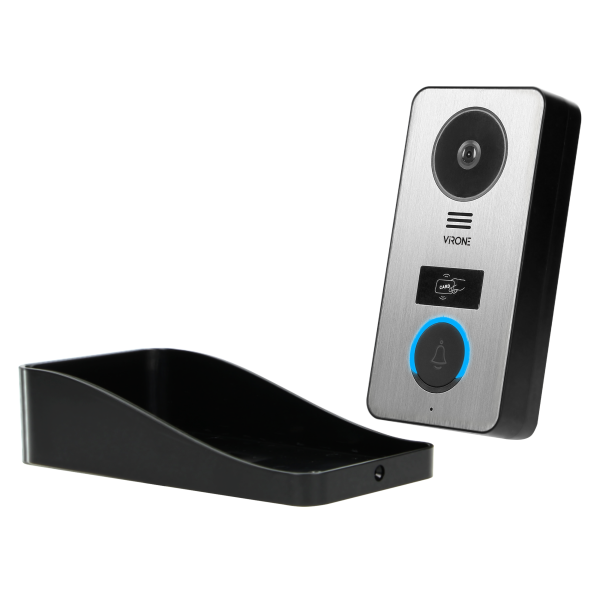

The outdoor unit is equipped with a high resolution Full HD 1080p camera with a wide viewing angle, so we can record photos or videos in high quality. In addition to this, we can use motion detection and event logging, and IR LEDs also allow for night vision without blinding the visitor. If, on the other hand, we only want to monitor our surroundings, Pavonis will allow us to do so discreetly, without having to inform our visitors. The device is also carefully manufactured and the use of high-quality materials and elegant design will allow us to enjoy it for a long time even in different weather conditions (IP65).
The Pavonis system is also highly expandable (a maximum of 1 additional outdoor unit, 3 monitors and 2 CCTV cameras in addition), so it is ideal for multi-storey houses, villas and larger properties. Extending the set with an additional monitor allows each monitor to be used as an intercom. Convenience and easy installation are ensured, among other things, by the number of wires (4) and the power supply for the outdoor unit and the electric strike (max. 300mA) provided from the monitor, which means there is no need for an additional power supply to the electric strike - just a short 2-wire cable from the outdoor unit to the electric strike.

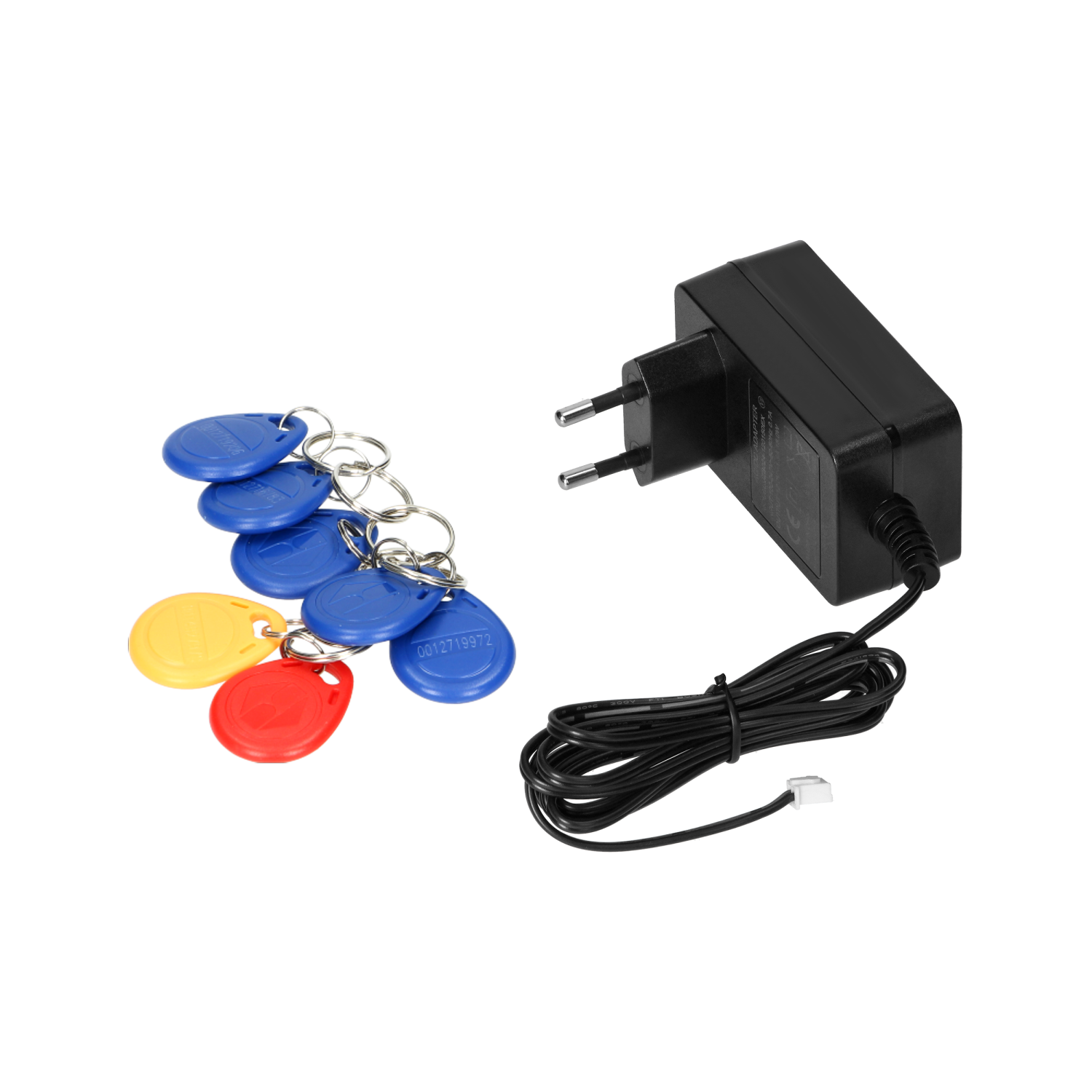

The system also supports access control for authorised persons. We can opt for operation via an app, or we have a choice of programmable key tag and card, thanks to the proximity reader included in the set. This allows us to safely, quickly and easily delegate access authorisation to the people we choose.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 12V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | tak |
| Wi-Fi Frequency: | 2,4GHz |
| Wi-Fi standard: | IEEE 802.11 b/g/n |
| App: | Tuya Smart |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 4 |
| Expandable to max. number of outdoor stations: | 2 |
| Expandable to max. number of CCTV cameras: | 2 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |
| Monitor: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 7" |
| Screen resolution: | 1024x600 |
| Touch screen: | tak |
| Property picture system: | Kolor |
| With memory function: | tak |
| SD card reader: | tak |
| Internal communication: | tak |
| Number of ringtones: | 6 |
| Specific call tone: | tak |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Srebrny |
| Dimensions of the monitor - Width [mm]: | 181 |
| Dimensions of the monitor - Height [mm]: | 181 |
| Dimensions of the monitor - Depth [mm]: | 18 |
| Other features: | automatyczna sekretarka;stacja pogody |
| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 1920x1080 |
| Camera view angle (vertical): | 54° |
| Camera view angle (horizontal): | 112° |
| Night light: | IR |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | nie |

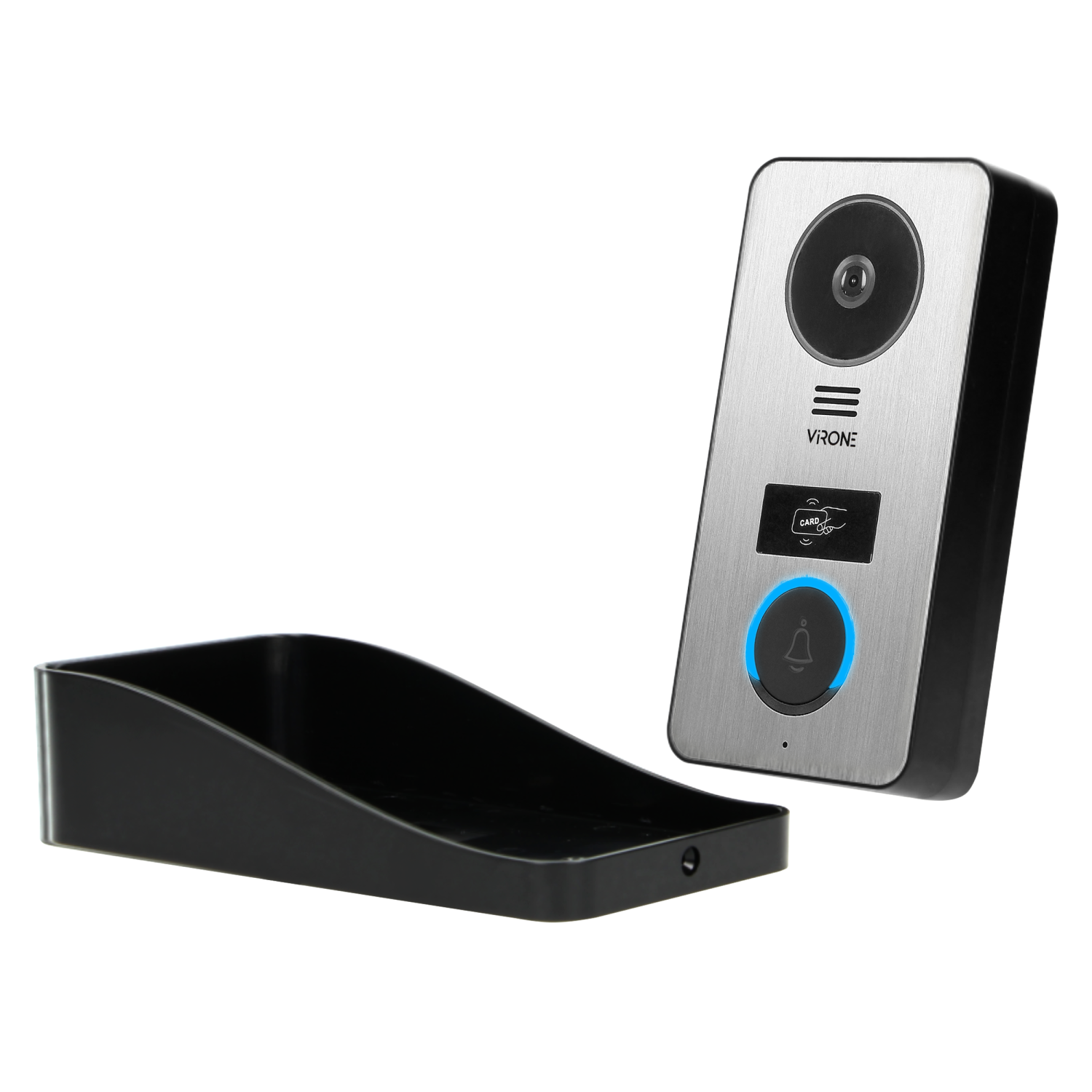

| With cover: | tak |
| Degree of protection (IP): | IP55 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 87 |
| Height [mm]: | 168 |
| Depth [mm]: | 40 |
| Other features: | RFID - max. 24 użytkowników (breloki w zestawie: 5 użytkownika + 2 administracyjne) |
