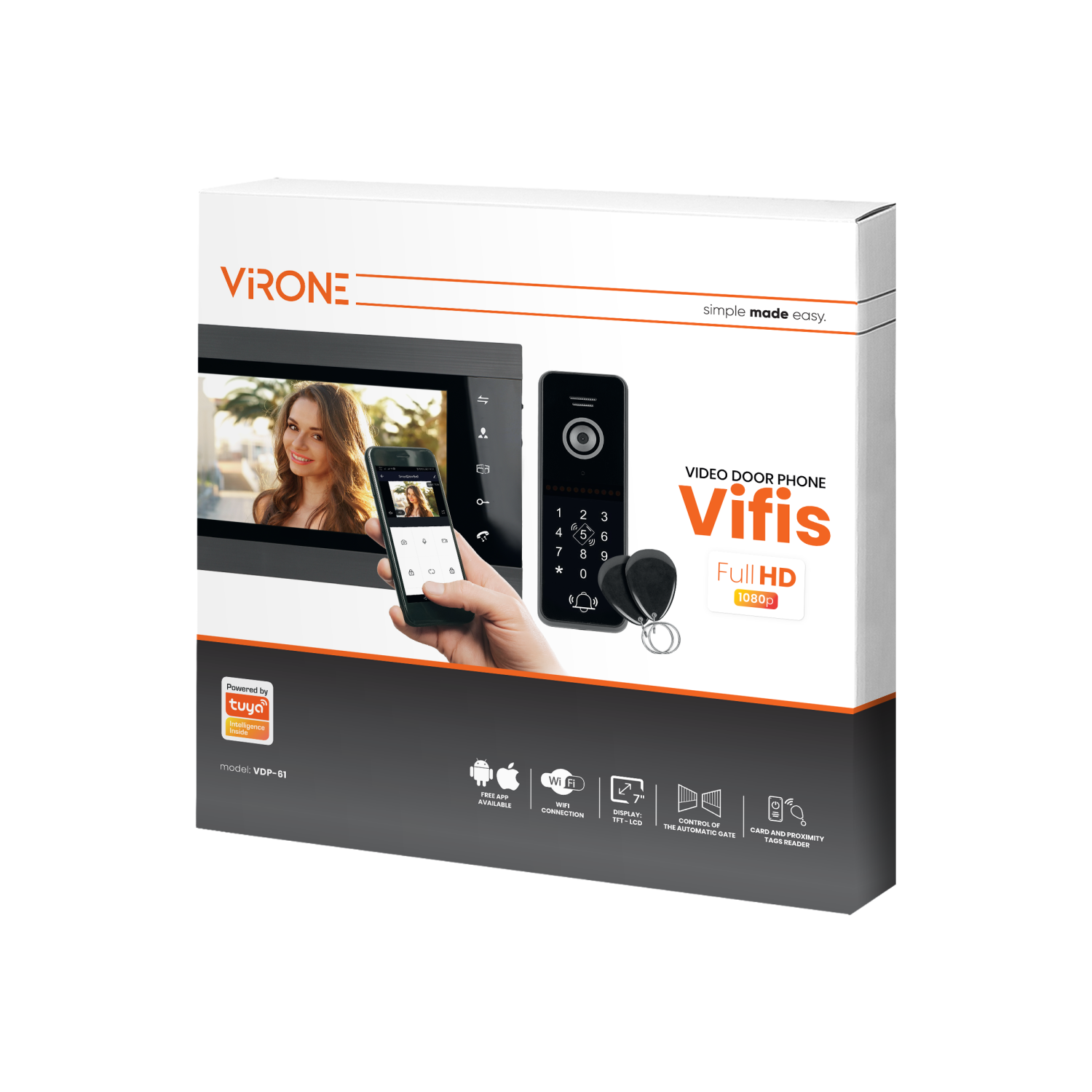

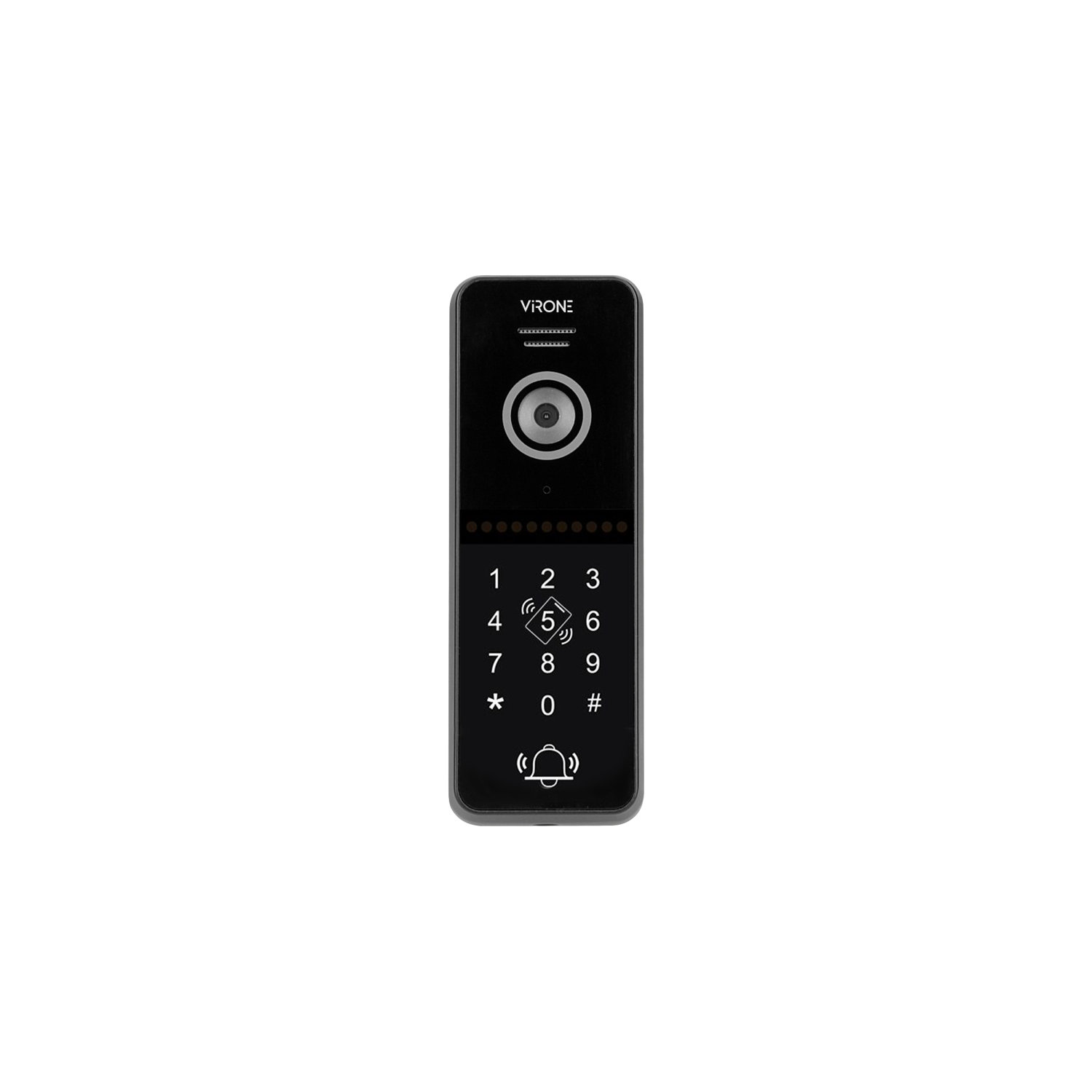

An innovative VIFIS Full HD video doorphone set includes an ultra-flat 7" LCD monitor, that guarantees a perfect image, and an outdoor video camera Full HD 1080P. Communication between the indoor and outdoor panels does not require any uniphone. Users can download a free TUYA app to manage the device directly from their smartphones. An additional lighting of the camera panel, provided by bright IR diodes, enables excellent night vision. It has a numeric code lock (to enter pin codes) and cards and proximity tags reader (MIFARE) to log in authorized users only. The set enables intercom connection, film and picture recordinggate control function and door lock opening. The set can be expanded with additional VIFIS Full HD devices.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 15V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | tak |
| Wi-Fi Frequency: | 2,4GHz |
| Wi-Fi standard: | IEEE 802.11 b/g/n |
| App: | Tuya Smart |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 6 |
| Expandable to max. number of outdoor stations: | 2 |
| Expandable to max. number of CCTV cameras: | 2 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |
| Monitor: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 7" |
| Screen resolution: | 1024x600 |
| Touch screen: | nie |
| Picture system: | PAL |
| Property picture system: | Kolor |
| With memory function: | tak |
| SD card reader: | tak |
| Internal communication: | tak |
| Number of ringtones: | 10 (+własne na karcie SD) |
| Specific call tone: | tak |
| Loudness control: | tak |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Czarny |
| Dimensions of the monitor - Width [mm]: | 238 |
| Dimensions of the monitor - Height [mm]: | 144 |
| Dimensions of the monitor - Depth [mm]: | 20.5 |
| Other features: | ramka cyfrowa;automatyczna sekretarka |
| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 1920x1080 |
| Camera view angle (vertical): | 58,5° |
| Camera view angle (horizontal): | 100° |
| Night light: | IR |
| With digital door code: | tak |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 13,56MHz |
| Label space/information surface: | nie |
| With cover: | nie |
| Degree of protection (IP): | IP44 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Czarny |
| Width [mm]: | 48 |
| Height [mm]: | 133 |
| Depth [mm]: | 22 |
| Other features: | RFID - max. 200 użytkowników (breloki w zestawie: 2) |
